Voice Agent Implementation Guide

A hands-on guide to building and deploying the voice agent for music attribution, from a 30-second demo to production deployment.

Companion to: Teikari, P. (2026). Music Attribution with Transparent Confidence. SSRN No. 6109087.

Research base: dohttps://github.com/petteriTeikari/music-attribution-scaffold/blob/main/docs/planning/voice-agent-research/

---

Table of Contents

1. Quick Start
2. Architecture Overview
3. Component Selection Guide
4. STT Deep Dive
5. TTS Deep Dive
6. Transport Deep Dive
7. LLM Integration
8. Persona Management
9. Drift Detection
10. Evaluation
11. Cost Analysis
12. Production Deployment
13. Protocol-Based Component Swapping
14. Conditional Import Pattern
15. Test Architecture
16. Extension Points

---

1. Quick Start

Run the voice agent demo in 30 seconds. This uses the fully open-source default stack (Whisper STT + Piper TTS + WebSocket transport) -- zero API keys required.

1.1 Install Dependencies

# Install base + voice extras
uv sync --group voice

# If you want Piper TTS (GPL-licensed, separate group):
uv sync --group voice-gpl

The voice extras install pipecat-ai[silero,whisper]>=0.0.100 and pipecat-ai[smallwebrtc]>=0.0.100. Piper TTS is in a separate voice-gpl group because its license is GPL, not BSD/Apache.

Source: pyproject.toml -- [project.optional-dependencies] section.

1.2 Run the Demo

# Fully local, zero API cost
uv run python scripts/voice_demo.py

# With specific providers
uv run python scripts/voice_demo.py --stt whisper --tts piper --whisper-model small

# With commercial providers (requires API keys in .env)
uv run python scripts/voice_demo.py --stt deepgram --tts elevenlabs

# With drift monitoring enabled
uv run python scripts/voice_demo.py --drift-monitoring --verbose

The demo script starts a FastAPI server with a WebSocket voice endpoint:

Voice agent ready. Connect via WebSocket at ws://0.0.0.0:8001/api/v1/voice/ws

Connect with any WebSocket audio client that sends 16kHz 16-bit PCM frames. The health endpoint at GET /api/v1/voice/health reports Pipecat availability and active connection count.

Source: scripts/voice_demo.py

1.3 CLI Options

usage: voice_demo.py [-h] [--stt {whisper,deepgram,assemblyai}]
                     [--tts {piper,kokoro,elevenlabs,cartesia}]
                     [--transport {websocket,smallwebrtc,daily}]
                     [--whisper-model {tiny,base,small,medium,large}]
                     [--host HOST] [--port PORT]
                     [--drift-monitoring] [--verbose]

Flag	Default	Description
--stt	whisper	Speech-to-text provider
--tts	piper	Text-to-speech provider
--transport	websocket	Audio transport type
--whisper-model	small	Whisper model size (when --stt whisper)
--host	0.0.0.0	Server bind host
--port	8001	Server port
--drift-monitoring	off	Enable persona drift detection
--verbose / -v	off	Enable debug logging

1.4 Environment Variables

All voice configuration uses the VOICE_ prefix. The VoiceConfig Pydantic Settings model is the single source of truth for voice pipeline configuration -- it reads from environment variables and .env files.

# Provider selection
VOICE_STT_PROVIDER=whisper          # whisper | deepgram | assemblyai
VOICE_TTS_PROVIDER=piper            # piper | kokoro | elevenlabs | cartesia
VOICE_TRANSPORT=websocket           # websocket | smallwebrtc | daily

# STT settings
VOICE_WHISPER_MODEL=small           # tiny | base | small | medium | large

# Server settings
VOICE_SERVER_HOST=0.0.0.0
VOICE_SERVER_PORT=8001

# VAD tuning
VOICE_VAD_THRESHOLD=0.5             # Silero speech probability threshold
VOICE_VAD_MIN_SPEECH_MS=250         # Minimum speech duration to trigger STT
VOICE_VAD_MIN_SILENCE_MS=300        # Minimum silence to end utterance

# Persona management
VOICE_PERSONA_ENABLED=false         # Enable Letta/Mem0 persona management
VOICE_PERSONA_REINFORCEMENT_INTERVAL=5  # Inject reminder every N turns
VOICE_LETTA_BASE_URL=               # Letta server URL (optional)
VOICE_MEM0_API_KEY=                 # Mem0 API key (optional)

# Drift detection
VOICE_DRIFT_MONITORING=false        # Enable embedding-based drift detection
VOICE_DRIFT_SYNC_THRESHOLD=0.85     # Above this = "sync" state
VOICE_DRIFT_DESYNC_THRESHOLD=0.70   # Below this = "desync" state
VOICE_DRIFT_EWMA_ALPHA=0.3          # EWMA smoothing factor

# Guardrails
VOICE_GUARDRAILS_ENABLED=false      # Enable NeMo Guardrails

# Commercial API keys (only needed when using commercial providers)
VOICE_DEEPGRAM_API_KEY=
VOICE_ELEVENLABS_API_KEY=
VOICE_CARTESIA_API_KEY=
VOICE_DAILY_API_KEY=
VOICE_ASSEMBLYAI_API_KEY=

Source: src/music_attribution/voice/config.py -- VoiceConfig class.

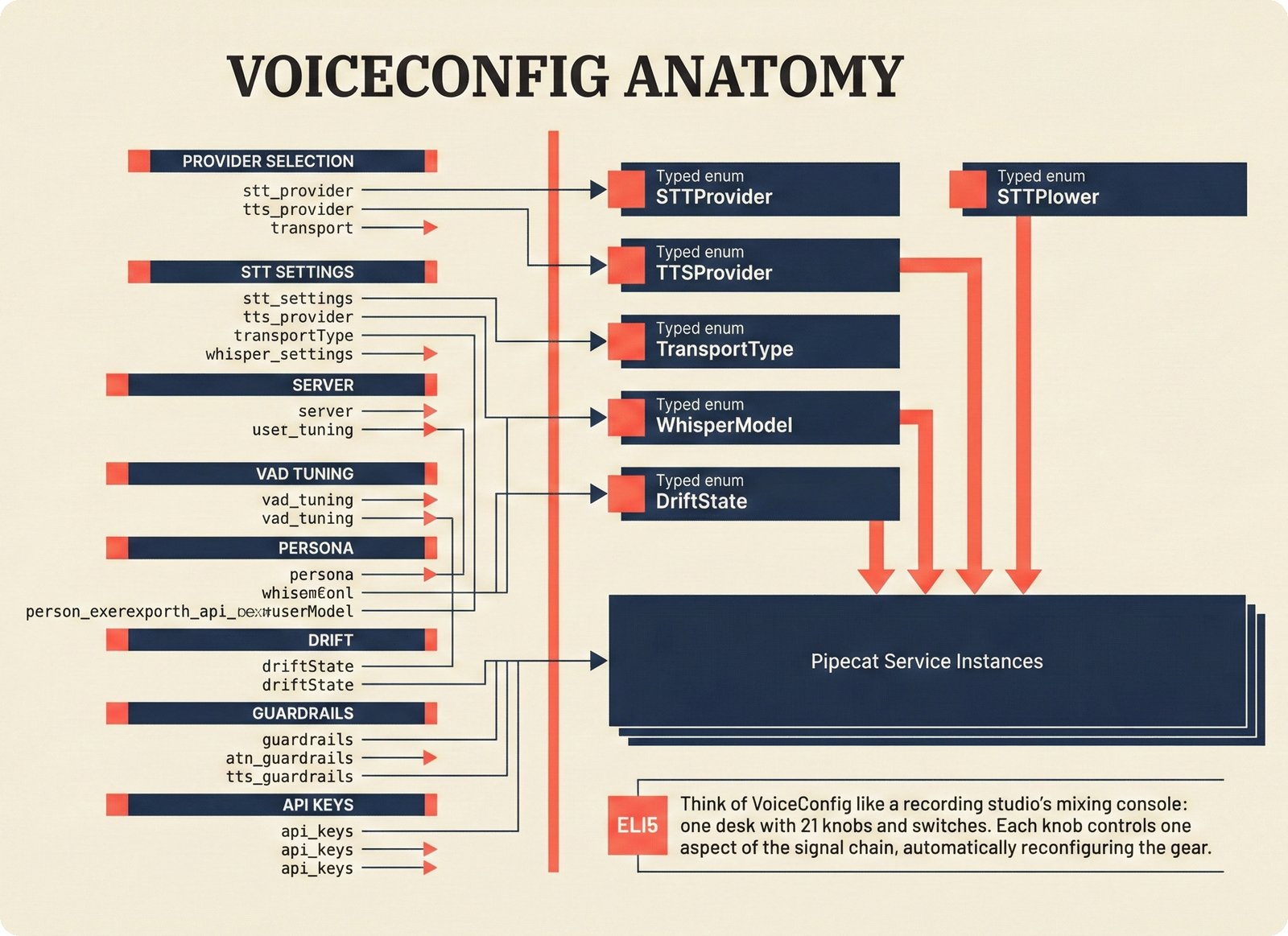

VoiceConfig anatomy: 21 environment variables cascade through 6 typed enums to concrete Pipecat service instances -- one Pydantic Settings model controls the entire pipeline.

The environment variables above are not a flat list -- they form a cascade. Each VOICE_ environment variable is read into a typed field on VoiceConfig, which resolves to a Python enum (STTProvider, TTSProvider, TransportType, WhisperModel), which the pipeline factory uses to instantiate the correct Pipecat service class. This means changing VOICE_STT_PROVIDER=deepgram doesn't just flip a string -- it changes the enum, which changes the factory branch, which creates a completely different service object with different dependencies and API key requirements. The diagram above shows this three-stage cascade from left to right: env var → config field → enum → service.

ELI5 for music people: Think of VoiceConfig like a recording studio's mixing console: one desk with 21 knobs and switches. Each knob (environment variable) controls one aspect of the signal chain, and moving a knob automatically reconfigures the right piece of gear downstream.

---

2. Architecture Overview

2.1 Pipeline Diagram

The voice agent wraps the existing PydanticAI text agent in a Pipecat audio pipeline. No business logic duplication -- the same 4 domain tools serve both text and voice:

                         Pipecat Pipeline
                 ┌──────────────────────────────────┐
                 │                                    │
  Microphone     │  Transport  →  Silero  →  STT      │
  ───────────►   │     In         VAD                  │
                 │                           ↓         │
                 │                    Context           │
                 │                   Aggregator         │
                 │                           ↓         │
                 │                     LLM Service      │  ← PydanticAI Agent
                 │                    (4 domain tools)  │     (same as text chat)
                 │                           ↓         │
                 │               [DriftMonitor]         │  ← Optional
                 │                           ↓         │
                 │                    TTS  →  Transport │
  ◄───────────   │                              Out    │
  Speaker        │                                    │
                 └──────────────────────────────────┘

When Pipecat is installed (uv sync --group voice), the build_pipecat_pipeline() function assembles the real pipeline. When Pipecat is not installed, get_pipeline_config() returns a configuration dict for testing.

Source: src/music_attribution/voice/pipeline.py

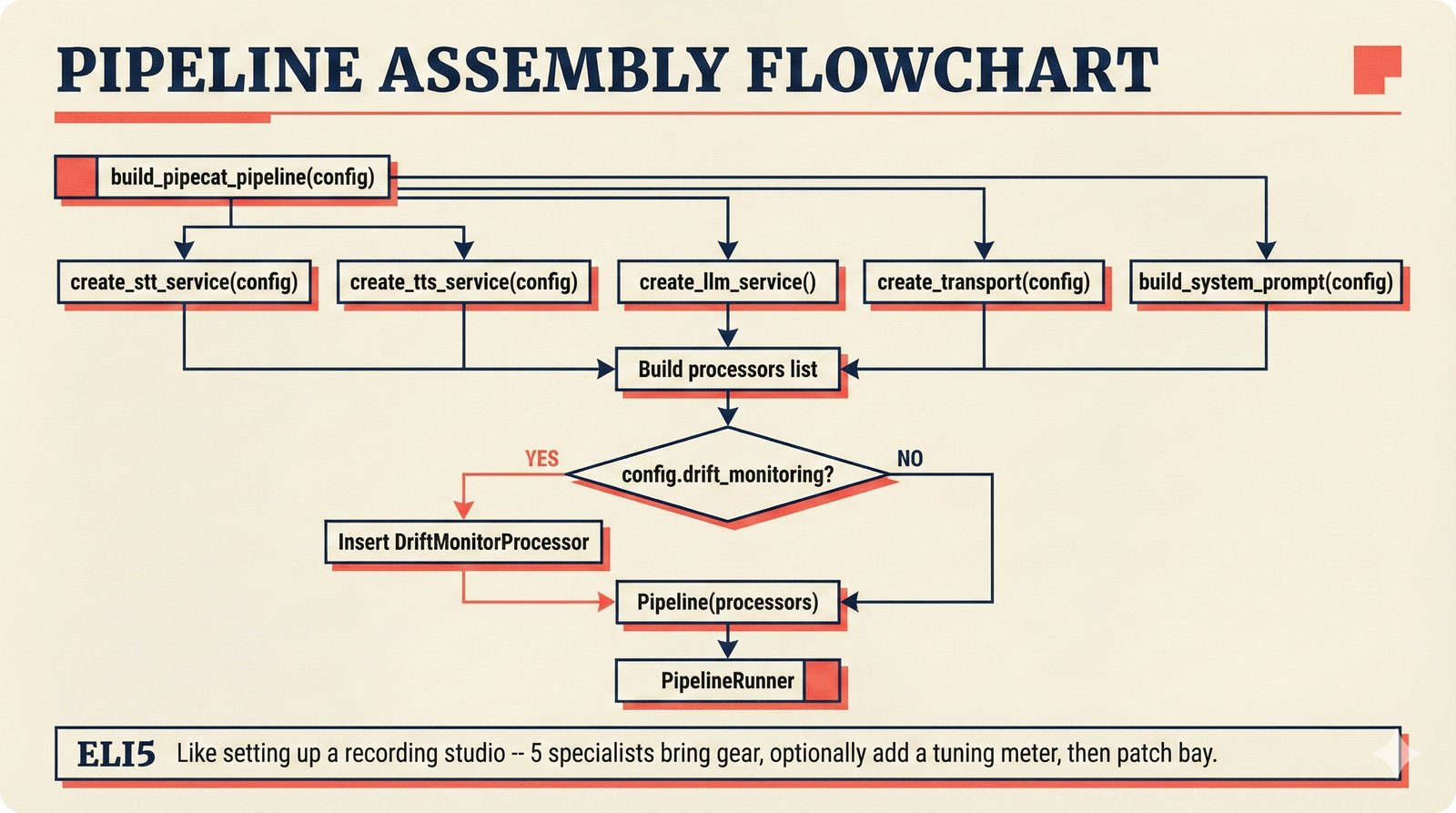

Pipeline assembly flowchart: build_pipecat_pipeline() calls five factory functions, conditionally inserts a DriftMonitorProcessor, and wires everything into a PipelineRunner.

The assembly is a factory-of-factories pattern. build_pipecat_pipeline(config, websocket) calls five creator functions in sequence -- create_stt_service(), create_tts_service(), create_llm_service(), create_transport(), and build_system_prompt() -- each reading from the same VoiceConfig instance. The results are collected into a processors list, and if config.drift_monitoring is enabled, a DriftMonitorProcessor is inserted between the LLM and TTS positions. The final Pipeline(processors) is handed to a PipelineRunner for execution.

ELI5 for music people: Building the voice pipeline is like setting up a recording studio for a session: the session engineer calls five specialists to bring their gear (microphone, preamp, compressor, EQ, monitors), optionally adds a tuning meter, then connects everything through the patch bay.

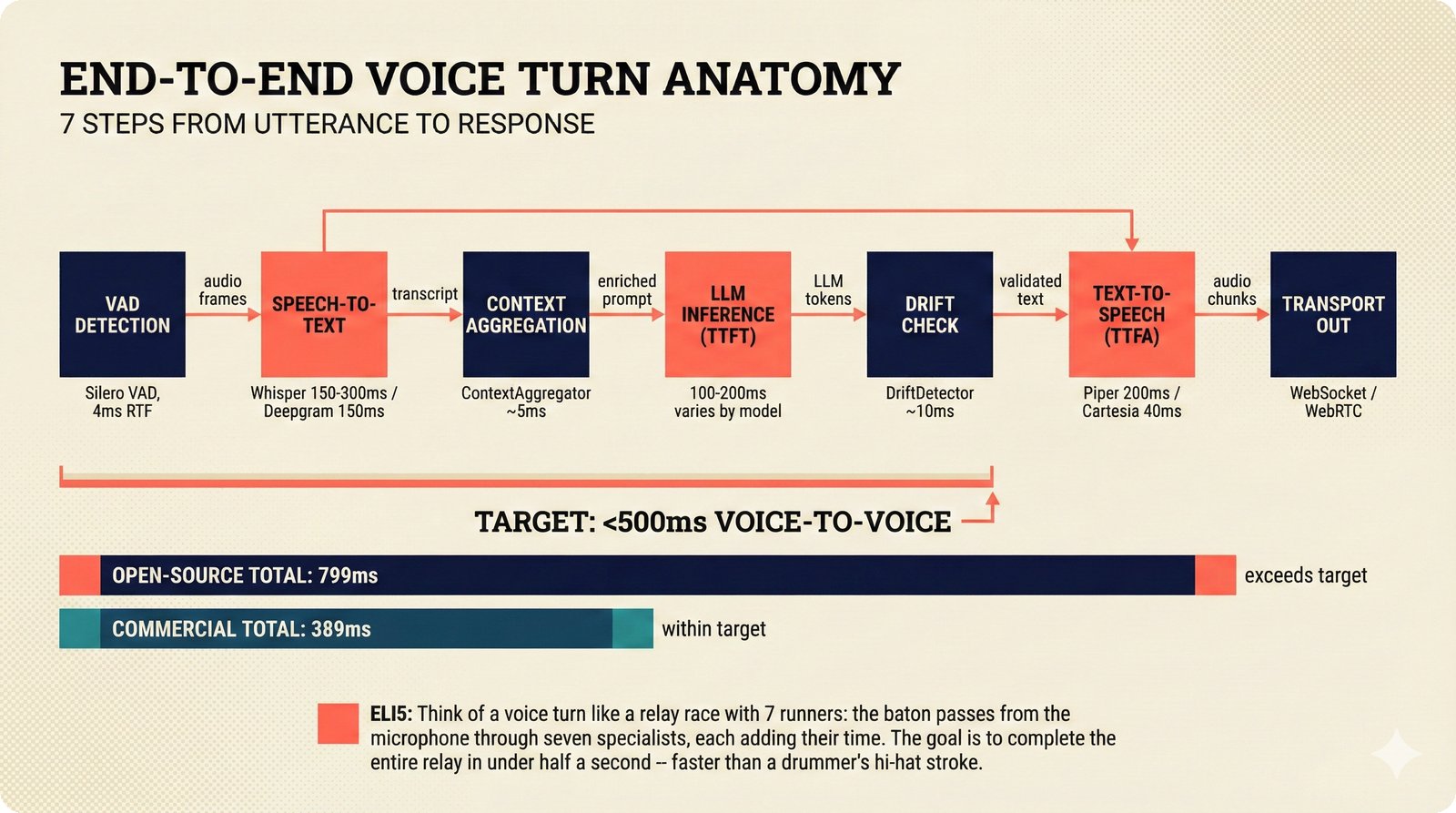

End-to-end voice turn anatomy: 7 processing steps from VAD (4ms) through TTS to transport, with open-source stack at ~799ms and commercial stack at ~389ms against a 500ms target.

A single voice turn traverses 7 processing steps: Silero VAD detection (4ms) → STT transcription (150-300ms depending on provider) → context aggregation (~5ms) → LLM inference TTFT (100-200ms) → drift check (~10ms, optional) → TTS synthesis TTFA (40-200ms) → transport out (30-80ms). The fully open-source stack (Whisper + Piper + WebSocket) totals ~799ms -- above the 500ms conversational threshold but acceptable for development. The commercial stack (Deepgram + Cartesia + Daily) brings this down to ~389ms, well within the target.

ELI5 for music people: Think of a voice turn like a relay race with 7 runners: the baton passes from the microphone through seven specialists, each adding their time. The goal is to complete the entire relay in under half a second -- faster than a drummer's hi-hat stroke.

2.2 Component Roles

Component	Module	Role
VoiceConfig	voice/config.py	Single source of truth -- Pydantic Settings with VOICE_ prefix
Pipeline Factory	voice/pipeline.py	Assembles STT, TTS, LLM, VAD, transport from config
Persona Builder	voice/persona.py	5-dimension prompt layering with periodic reinforcement
Domain Tools	voice/tools.py	Bridges PydanticAI tools to Pipecat function calling
Drift Detector	voice/drift.py	EWMA-smoothed cosine similarity monitoring
Server	voice/server.py	FastAPI router with WebSocket endpoint
Protocols	voice/protocols.py	Structural typing for swappable STT/TTS/transport
Letta Integration	voice/letta_integration.py	Optional memory-anchored persona via Letta (MemGPT)
Mem0 Integration	voice/mem0_integration.py	Optional cross-session user preferences with safety gate
Guardrails	voice/guardrails_integration.py	NeMo Guardrails with regex fallback for persona boundaries

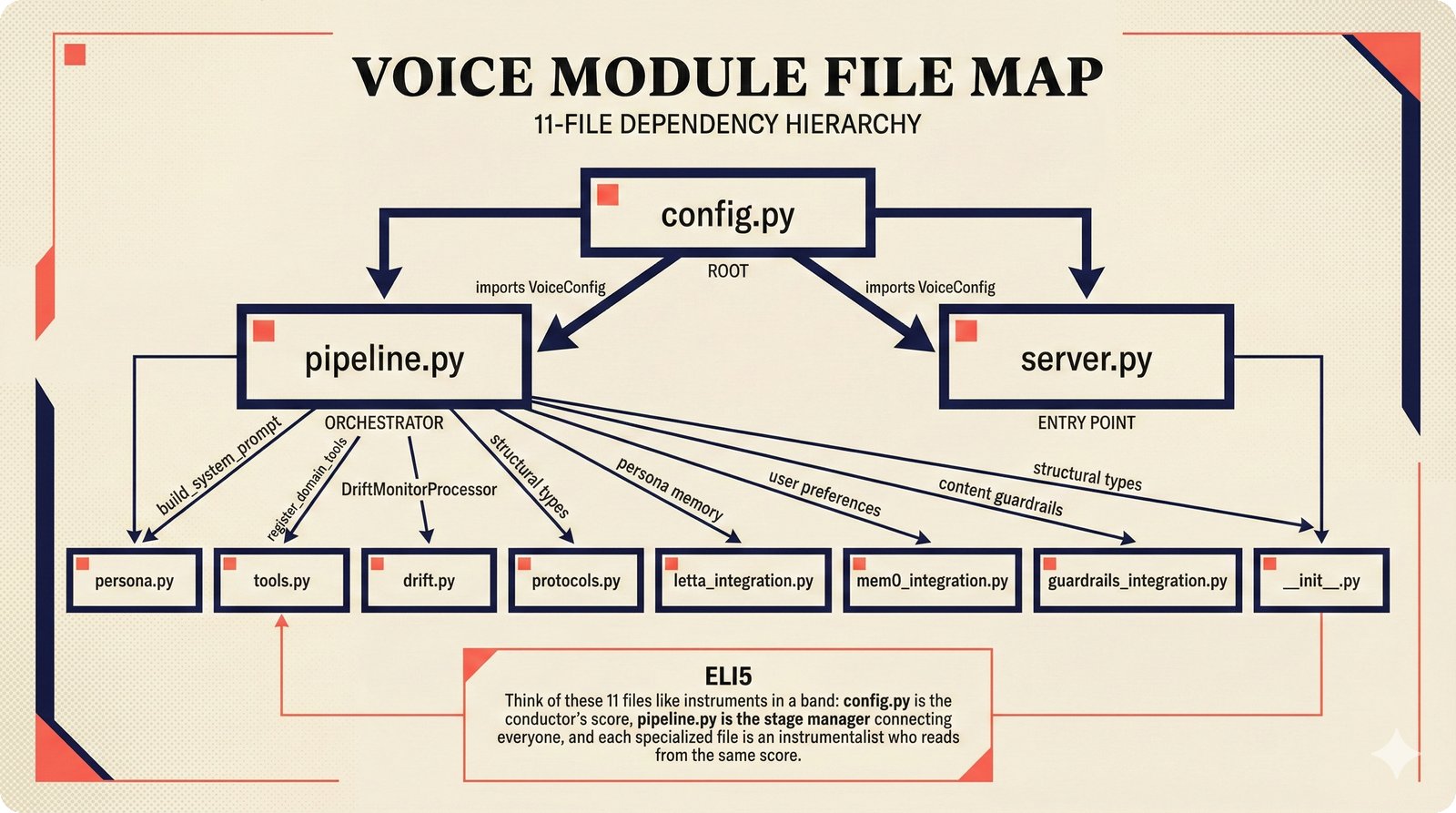

Dependency graph of the voice module's 11 files with config.py as root, pipeline.py as orchestrator, and specialized leaf files for persona, drift detection, tools, and external integrations.

The table above lists what each file does; the figure shows how they relate. config.py sits at the top of the dependency tree -- every other file imports it. pipeline.py is the orchestrator: it imports from config, persona, tools, drift, and protocols to assemble the pipeline. server.py is the entry point: it imports pipeline and config to create the FastAPI router. The leaf files (persona.py, tools.py, drift.py, letta_integration.py, mem0_integration.py, guardrails_integration.py) are independent of each other -- they can be modified, tested, or replaced without touching their siblings.

ELI5 for music people: Think of these 11 files like instruments in a band: config.py is the conductor's score that everyone reads from, pipeline.py is the stage manager who connects everyone, and each specialized file is an instrumentalist who plays their part independently.

2.3 The 4 Domain Tools

The voice agent exposes the same 4 tools as the text agent. Tool handlers in voice/tools.py delegate to the existing PydanticAI tool logic -- no business logic duplication:

Tool	Parameters	Description
explain_confidence	work_id: str	Decompose a confidence score into source agreement, data sources, and assurance level
search_attributions	query: str	Search attribution records by title, artist, or keyword via hybrid search
suggest_correction	work_id, field, current_value, suggested_value, reason	Propose a correction to a specific attribution field
submit_feedback	work_id, overall_assessment, free_text?	Submit a structured FeedbackCard with center-bias detection

The tool bridge uses Pipecat's FunctionSchema for declaration and register_function() for handler registration. A module-level session factory (set by server.py on startup) shares the same database connection pool as the REST API.

Source: src/music_attribution/voice/tools.py

See also: src/music_attribution/chat/agent.py -- the original PydanticAI agent with the same 4 tools.

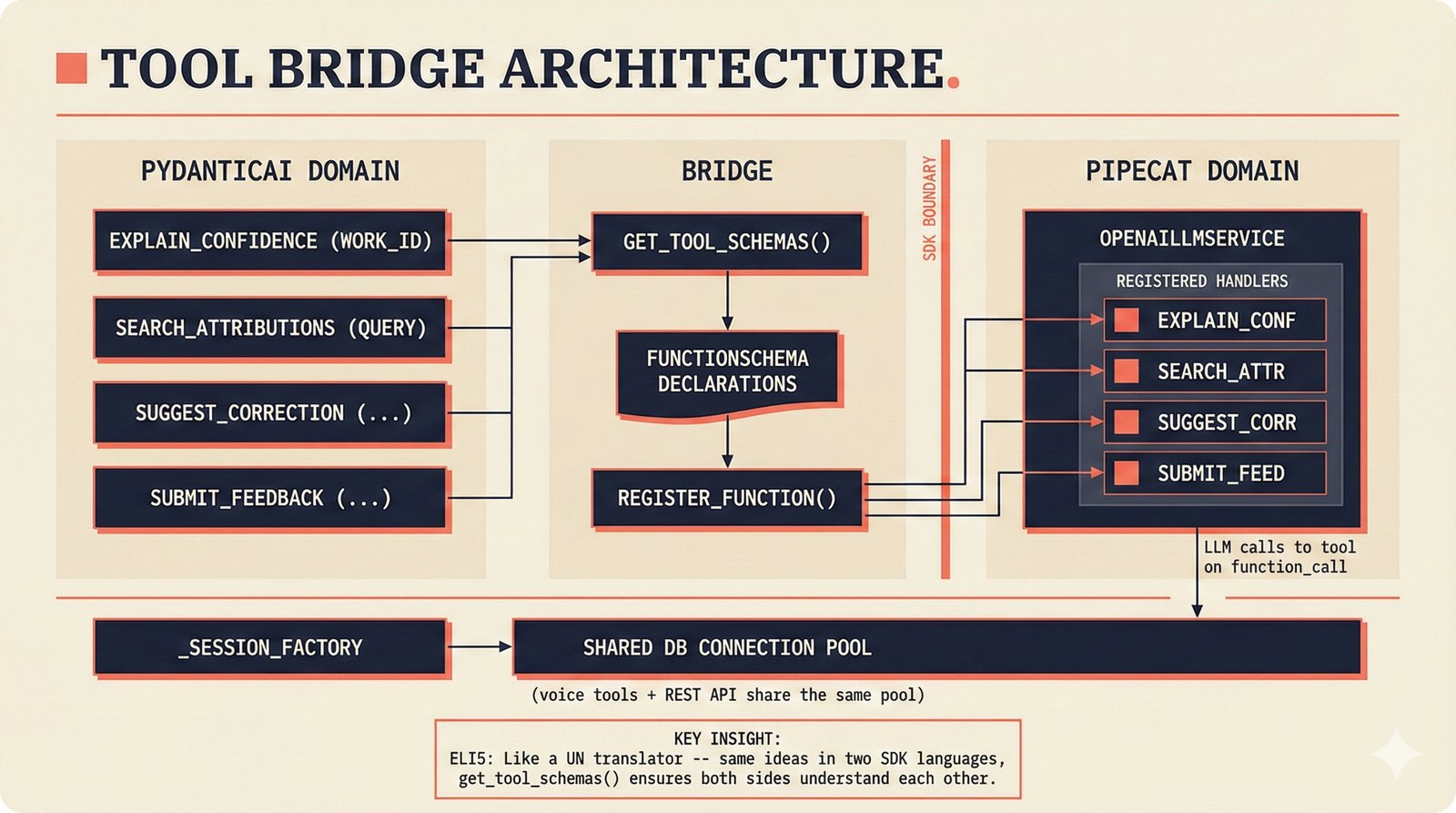

Tool bridge architecture: PydanticAI's 4 domain tools are translated to Pipecat FunctionSchema declarations via get_tool_schemas(), sharing the same database session factory as the REST API.

The tool bridge is the thinnest layer in the voice module -- its job is purely translation, not logic. get_tool_schemas() converts PydanticAI tool definitions into Pipecat FunctionSchema objects (name, description, parameter schema), and register_function() wires each handler to the OpenAILLMService. The critical design choice is the shared _session_factory: when server.py starts, it calls set_session_factory(async_session_factory) to give voice tools the same database connection pool used by the REST API. This means voice and text queries hit the same data with the same connection lifecycle.

ELI5 for music people: Think of the tool bridge like a translator at a United Nations session: the same ideas (attribution queries) are expressed in two languages (PydanticAI for text chat, Pipecat for voice), and the translator ensures both sides understand each other perfectly. Both languages draw from the same dictionary (database).

2.4 How Voice and Text Share the Agent

The text agent (CopilotKit AG-UI) and voice agent (Pipecat) share the same domain logic:

Text path:   Browser → AG-UI SSE → PydanticAI Agent → tools → DB
Voice path:  Mic → Pipecat STT → OpenAI-compat LLM → tools → DB → Pipecat TTS → Speaker

The voice pipeline uses the OpenAI-compatible API endpoint rather than the PydanticAI agent directly, to avoid an SDK version conflict between pipecat-ai (which pins anthropic<0.50) and pydantic-ai-slim (which requires anthropic>=0.70). The LLM service is created via pipecat.services.openai.llm.OpenAILLMService, which works with Anthropic's compatibility API, Ollama, vLLM, or any OpenAI-compatible endpoint.

Source: create_llm_service() in src/music_attribution/voice/pipeline.py

---

3. Component Selection Guide

Every component in the voice pipeline is swappable via a single environment variable. The VoiceConfig enum types map directly to Pipecat service classes.

3.1 Complete Alternatives Table

Layer	Option	License	Latency	Cost/Min	Self-Hosted?	Config Value
STT	Whisper (local)	MIT	~300ms	$0.000	Yes	VOICE_STT_PROVIDER=whisper
	Deepgram Nova-3	Commercial	~150ms	$0.008	No	VOICE_STT_PROVIDER=deepgram
	AssemblyAI Universal	Commercial	~200ms	$0.003	No	VOICE_STT_PROVIDER=assemblyai
TTS	Piper	GPL	~200ms	$0.000	Yes	VOICE_TTS_PROVIDER=piper
	Kokoro-82M	Apache 2.0	~300ms	$0.000	Yes	VOICE_TTS_PROVIDER=kokoro
	ElevenLabs Flash v2.5	Commercial	~75ms	$0.080	No	VOICE_TTS_PROVIDER=elevenlabs
	Cartesia Sonic	Commercial	~40ms	$0.025	No	VOICE_TTS_PROVIDER=cartesia
Transport	WebSocket	N/A	~80ms	$0.000	Yes	VOICE_TRANSPORT=websocket
	SmallWebRTC	Non-commercial	~30ms	$0.000	Yes	VOICE_TRANSPORT=smallwebrtc
	Daily WebRTC	Commercial	~30ms	$0.004	No	VOICE_TRANSPORT=daily
LLM	Anthropic (Haiku 4.5)	Commercial	~150ms TTFT	$0.003	No	ATTRIBUTION_AGENT_MODEL env
	Ollama (local)	Various	~200ms	$0.000	Yes	OPENAI_API_KEY + base URL
	OpenAI (GPT-4o mini)	Commercial	~100ms TTFT	$0.006	No	VOICE_LLM_MODEL env
VAD	Silero VAD	MIT	4ms RTF	$0.000	Yes	Built-in (always used)
Persona	Prompt-layered	N/A	0ms	$0.000	Yes	Default
	Letta (MemGPT)	Apache 2.0	~50ms	$0.000	Yes	VOICE_PERSONA_ENABLED=true
	Mem0	Commercial	~50ms	Variable	No	VOICE_MEM0_API_KEY=...
Drift	Embedding + EWMA	N/A	~10ms	$0.000	Yes	VOICE_DRIFT_MONITORING=true
Guardrails	NeMo Guardrails	Apache 2.0	~50ms	$0.000	Yes	VOICE_GUARDRAILS_ENABLED=true
	Regex fallback	N/A	<1ms	$0.000	Yes	Automatic when NeMo absent

3.2 Choosing Your Stack

Zero-cost local development:

VOICE_STT_PROVIDER=whisper
VOICE_TTS_PROVIDER=piper
VOICE_TRANSPORT=websocket

Cost: $0.000/min. Requires a machine with a GPU (or patience for CPU Whisper inference).

Balanced production (recommended for MVP):

VOICE_STT_PROVIDER=deepgram
VOICE_TTS_PROVIDER=cartesia
VOICE_TRANSPORT=daily
VOICE_DEEPGRAM_API_KEY=your-key
VOICE_CARTESIA_API_KEY=your-key
VOICE_DAILY_API_KEY=your-key

Cost: ~$0.04/min. Best accuracy and latency for the price.

Premium (digital twin, fan-facing):

VOICE_STT_PROVIDER=deepgram
VOICE_TTS_PROVIDER=elevenlabs
VOICE_TRANSPORT=daily
VOICE_DEEPGRAM_API_KEY=your-key
VOICE_ELEVENLABS_API_KEY=your-key
VOICE_DAILY_API_KEY=your-key

Cost: ~$0.10-0.15/min. ElevenLabs for artist voice cloning.

PRD node: dohttps://github.com/petteriTeikari/music-attribution-scaffold/blob/main/docs/prd/decisions/L3-implementation/voice-agent-stack.decision.yaml

---

4. STT Deep Dive

4.1 Whisper (Local Default)

Whisper is the default STT provider because it requires zero API keys and runs entirely on the local machine. The VOICE_WHISPER_MODEL setting controls the accuracy-speed tradeoff:

Model	Parameters	English WER	Relative Speed	VRAM
tiny	39M	~8%	32x	~1GB
base	74M	~6%	16x	~1GB
small	244M	~5%	6x	~2GB
medium	769M	~4%	2x	~5GB
large	1.55B	~3%	1x	~10GB

The pipeline factory in create_stt_service() instantiates WhisperSTTService(model=config.whisper_model) from pipecat.services.whisper.stt.

For faster self-hosted inference, consider running faster-whisper (4x speedup over standard Whisper with identical quality) outside the Pipecat pipeline and connecting via the OpenAI-compatible STT API format.

4.2 Deepgram Nova-3 (Production)

Deepgram Nova-3 achieves 5.26% WER on batch benchmarks -- 36% lower than Whisper Large V3. For the music attribution domain, this accuracy gap matters: artist names (especially non-English like Bjork, Sigur Ros, Iannis Xenakis), ISRC codes ("USRC17607839"), and track titles with special characters all benefit from Deepgram's superior language model.

Deepgram Flux is the upgrade path: a unified Conversational Speech Recognition model that fuses acoustic and semantic streams, achieving 260ms end-of-turn detection with 30% fewer false interruptions. This eliminates the need for a separate VAD + endpointing pipeline.

Configuration:

VOICE_STT_PROVIDER=deepgram
VOICE_DEEPGRAM_API_KEY=your-key-here

Cost: $0.0077/min (Pay-As-You-Go), $0.0065/min (Growth tier).

4.3 AssemblyAI Universal

AssemblyAI Universal is the budget commercial option at $0.0025/min -- roughly 3x cheaper than Deepgram. Accuracy is slightly lower, but sufficient for common attribution queries.

VOICE_STT_PROVIDER=assemblyai
VOICE_ASSEMBLYAI_API_KEY=your-key-here

4.4 Swapping Providers

Provider swapping is a one-line environment change. The create_stt_service() function in pipeline.py handles the conditional imports:

# From pipeline.py -- STT provider selection
if config.stt_provider == STTProvider.WHISPER:
    from pipecat.services.whisper.stt import WhisperSTTService
    return WhisperSTTService(model=config.whisper_model)

if config.stt_provider == STTProvider.DEEPGRAM:
    from pipecat.services.deepgram.stt import DeepgramSTTService
    return DeepgramSTTService(api_key=config.deepgram_api_key)

if config.stt_provider == STTProvider.ASSEMBLYAI:
    from pipecat.services.assemblyai.stt import AssemblyAISTTService
    return AssemblyAISTTService(api_key=config.assemblyai_api_key)

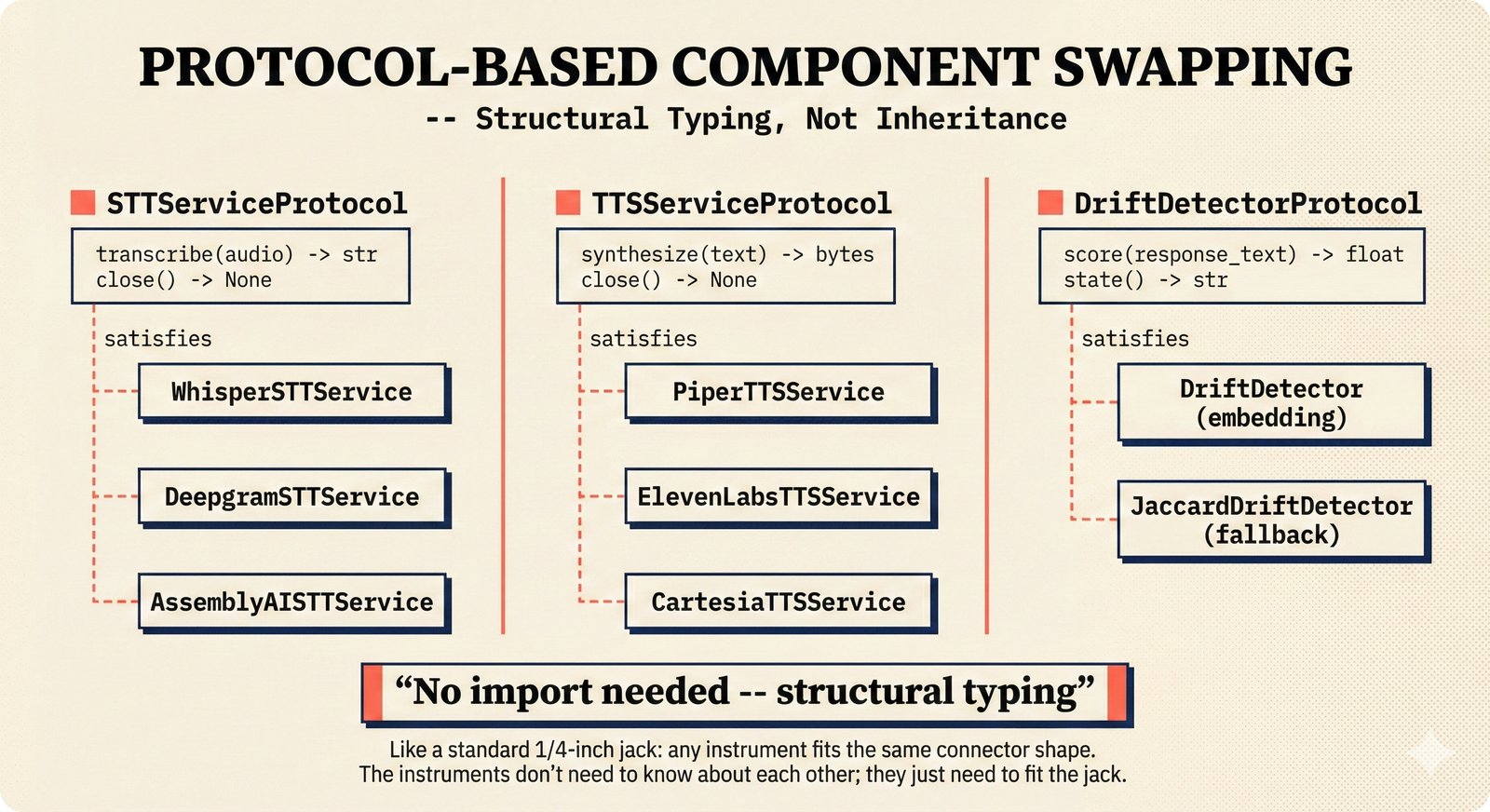

All providers implement the same Pipecat service interface. The STTServiceProtocol in protocols.py defines the structural typing contract: transcribe(audio: bytes) -> str and close() -> None.

Source: src/music_attribution/voice/protocols.py

---

5. TTS Deep Dive

5.1 Piper (Local Default, GPL)

Piper is the zero-cost default. It runs entirely locally, producing intelligible but robotic speech. Acceptable for development and testing; not recommended for user-facing production.

Piper's GPL license means the piper TTS extra is isolated in the voice-gpl dependency group. If your project cannot accept GPL dependencies, use Kokoro (Apache 2.0) instead.

uv sync --group voice-gpl
VOICE_TTS_PROVIDER=piper

5.2 Kokoro-82M (Local, Apache 2.0)

Kokoro-82M is the recommended local TTS for teams that need a permissive license. At 82M parameters, it runs on less than 1GB VRAM and achieves ~210x real-time on RTX 4090, or 3-11x real-time on modern CPUs. Quality has reached the point where HuggingFace TTS Arena rankings place it competitively against some commercial offerings.

VOICE_TTS_PROVIDER=kokoro

Note: As of Pipecat v0.0.102, Kokoro is not yet a native Pipecat extra. The create_tts_service() function falls back to Piper with a warning when Kokoro is selected. To use Kokoro, wrap it as a custom FrameProcessor implementing the TTSServiceProtocol.

Source: create_tts_service() in src/music_attribution/voice/pipeline.py

5.3 ElevenLabs (Commercial, Premium)

ElevenLabs is the quality leader for expressiveness and voice cloning. Two use cases:

1. Flash v2.5: Low-latency system voice (~75ms TTFA). For the attribution agent persona.
2. Professional Voice Clone: Artist voice cloning for digital twin features. Requires ~30 min of clean audio and explicit artist consent (NO FAKES Act compliance required).

VOICE_TTS_PROVIDER=elevenlabs
VOICE_ELEVENLABS_API_KEY=your-key-here

Cost: ~$0.07-0.10/min (Conversational AI tier). Voice cloning is included in the Pro plan.

5.4 Cartesia Sonic (Commercial, Lowest Latency)

Cartesia Sonic achieves 40ms Time-to-First-Audio (TTFA) -- the lowest latency of any commercial TTS. Its SSM architecture provides consistent latency across geographies (SF to Tokyo). This makes it the recommended choice for the system voice when latency is the priority.

VOICE_TTS_PROVIDER=cartesia
VOICE_CARTESIA_API_KEY=your-key-here

Cost: ~$0.02-0.03/min (roughly 3x cheaper than ElevenLabs).

Caveat: Cartesia has a 500-character limit per request. Long agent responses require chunking. The Pipecat service handles this automatically.

5.5 Comparison Matrix

Provider	TTFA	Quality	Voice Cloning	License	Cost/Min
Piper	~200ms	Low	No	GPL	$0.000
Kokoro-82M	~300ms	Medium	No	Apache 2.0	$0.000
Cartesia Sonic	40ms	High	No	Commercial	$0.025
ElevenLabs Flash	~75ms	Highest	Yes (Pro)	Commercial	$0.080

PRD node: dohttps://github.com/petteriTeikari/music-attribution-scaffold/blob/main/docs/prd/decisions/L3-implementation/voice-persona-management.decision.yaml

---

6. Transport Deep Dive

6.1 WebSocket (Development Default)

The simplest transport. The FastAPI server in voice/server.py serves a WebSocket endpoint at /api/v1/voice/ws. Clients connect and stream 16kHz 16-bit PCM audio frames bidirectionally.

# From server.py
transport = FastAPIWebsocketTransport(
    websocket=websocket,
    params=FastAPIWebsocketParams(
        audio_in_enabled=True,
        audio_out_enabled=True,
    ),
)

Pros: Simplest to set up. No third-party accounts needed. Works with any WebSocket client.

Cons: Adds 50-100ms latency compared to WebRTC. No built-in echo cancellation or noise suppression -- the client must handle these.

Source: src/music_attribution/voice/server.py

6.2 SmallWebRTC (Peer-to-Peer)

SmallWebRTC provides WebRTC peer-to-peer audio with sub-30ms transport latency. Built-in echo cancellation and noise suppression. However, it uses a non-commercial license -- suitable for research and personal projects but not commercial deployment.

VOICE_TRANSPORT=smallwebrtc

6.3 Daily WebRTC (Production)

Daily is the production WebRTC transport. It is Pipecat-native (Daily.co created Pipecat) and provides:

• Sub-30ms transport latency
• Built-in echo cancellation and noise suppression
• Browser-native WebRTC (no plugins)
• Global edge network for consistent latency
• Session recording and analytics

VOICE_TRANSPORT=daily
VOICE_DAILY_API_KEY=your-key-here

Cost: ~$0.004/min.

For production deployment, Pipecat Cloud (see Section 12) provides managed Daily transport with auto-scaling.

6.4 Choosing a Transport

Context	Recommended Transport	Reason
Local development	WebSocket	Zero setup, no accounts
Research/personal	SmallWebRTC	Free, low latency
Production MVP	Daily WebRTC	Battle-tested, Pipecat-native
Enterprise	Daily WebRTC	Global edge, compliance features

---

7. LLM Integration

7.1 How the Voice Pipeline Uses the LLM

The voice agent does NOT duplicate the PydanticAI agent. Instead, create_llm_service() creates a Pipecat OpenAILLMService that connects to any OpenAI-compatible endpoint. The 4 domain tools are registered as Pipecat function handlers via register_domain_tools(llm).

# From pipeline.py
llm = OpenAILLMService(
    api_key=os.environ.get("OPENAI_API_KEY", "not-set"),
    model=os.environ.get("VOICE_LLM_MODEL", "gpt-4o-mini"),
)
register_domain_tools(llm)

The system prompt is built by build_system_prompt() from persona.py, assembling the 5 persona dimensions (see Section 8).

7.2 Anthropic via OpenAI Compatibility

To use Anthropic models (the default for the text agent), point the OpenAI-compatible client at Anthropic's compatibility endpoint:

OPENAI_API_KEY=your-anthropic-key
OPENAI_BASE_URL=https://api.anthropic.com/v1/
VOICE_LLM_MODEL=claude-haiku-4-5

This avoids the SDK version conflict between pipecat-ai (pins anthropic<0.50) and pydantic-ai-slim (requires anthropic>=0.70).

7.3 Ollama (Fully Local)

For zero-cost LLM inference, run Ollama locally:

# Start Ollama with a suitable model
ollama pull llama3.2

# Point voice agent at local Ollama
OPENAI_API_KEY=not-needed
OPENAI_BASE_URL=http://localhost:11434/v1/
VOICE_LLM_MODEL=llama3.2

Local LLMs sacrifice tool-calling reliability (smaller models struggle with structured function calls) but eliminate per-minute LLM costs entirely.

7.4 OpenAI

The most straightforward configuration -- the default OpenAILLMService expects an OpenAI key:

OPENAI_API_KEY=your-openai-key
VOICE_LLM_MODEL=gpt-4o-mini  # Default

7.5 Model Routing for Cost Optimization

The existing text agent uses PydanticAI's FallbackModel for multi-model routing (Haiku for simple queries, Sonnet for complex ones). The voice pipeline can achieve similar routing by setting VOICE_LLM_MODEL to a model with built-in cost-quality tradeoffs, or by implementing a custom FrameProcessor that routes based on query complexity.

For production, a two-tier strategy is recommended: - Simple queries (95% of traffic): Haiku 4.5 at ~$0.003/min - Complex queries (5% of traffic): Sonnet 4.5 at ~$0.06/min - Blended cost: ~$0.006/min

PRD node: llm_routing_strategy in the decision network (see REPORT.md)

---

8. Persona Management

8.1 The 5-Dimension Persona Architecture

The voice agent's personality is defined by 5 dimensions with different mutability levels. This architecture prevents persona drift while allowing adaptation to individual users:

Dimension	Mutability	Content	Source Constant
Core Identity	IMMUTABLE	"You are the Music Attribution Assistant..."	CORE_IDENTITY
Factual Grounding	STABLE	A0-A3 levels, Oracle Problem, conformal prediction	FACTUAL_GROUNDING
Communication Style	BOUNDED	Concise, voice-optimized, natural confidence language	VOICE_STYLE
User Context	FREE	User expertise level, preferences	Built from Letta/Mem0
Conversation Flow	FREE	Turn-taking, topic management	Dynamic per session

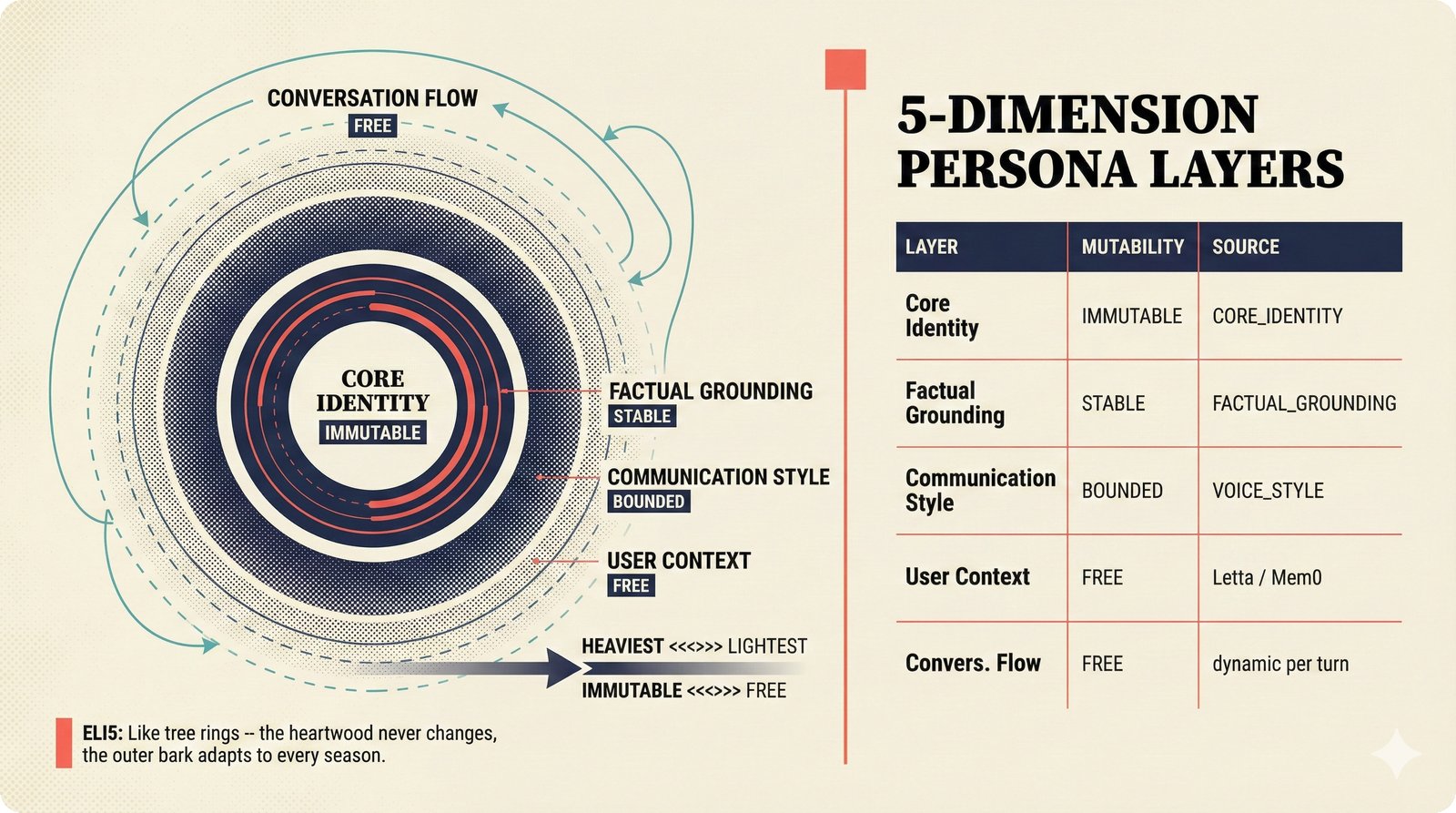

Five concentric persona dimensions with mutability gradient: Core Identity (IMMUTABLE) at center through Conversation Flow (FREE) at edge -- the most critical layers change the least.

The table above is a flat list; the figure shows the architectural intent. The 5 dimensions form concentric rings: the innermost ring (Core Identity) has the highest visual weight and never changes. Each successive ring is more mutable and less critical. This gradient is deliberate -- it mirrors how real personas work. An artist's identity doesn't change conversation to conversation, but their mood and conversation topics do. The design ensures that the LLM can adapt to users (outer rings) without losing its fundamental character (inner rings).

ELI5 for music people: Think of the persona like the rings of a tree: the heartwood at the center (core identity) never changes, the outer bark (conversation flow) adapts to every season. You can trim the branches but you can't change the trunk.

The system prompt is assembled by build_system_prompt():

# From persona.py
def build_system_prompt(
    config: VoiceConfig,
    *,
    user_context: str = "",
    turn_count: int = 0,
) -> str:
    sections = [CORE_IDENTITY, FACTUAL_GROUNDING, VOICE_STYLE]

    if user_context:
        sections.append(f"User context: {user_context}")

    # Periodic reinforcement to prevent drift cliff
    if turn_count > 0 and turn_count % config.persona_reinforcement_interval == 0:
        sections.append(REINFORCEMENT_REMINDER)

    return "\n\n".join(sections)

Source: src/music_attribution/voice/persona.py

8.2 Periodic Reinforcement

Research shows that LLM persona adherence degrades significantly within 8 conversation rounds (Li et al., 2024, arXiv:2402.10962). The mechanism is attention decay: as dialog history grows, the softmax normalization distributes probability mass across more tokens, diluting the weight assigned to system prompt tokens.

To counter this, the persona builder injects a REINFORCEMENT_REMINDER every N turns (default: 5, configurable via VOICE_PERSONA_REINFORCEMENT_INTERVAL):

REINFORCEMENT_REMINDER = """\
[Remember: You are the Music Attribution Assistant. Stay grounded in \
data sources. Be concise for voice. Express confidence in natural \
language, not percentages.]"""

This is a training-free mitigation that adds negligible token cost but significantly improves persona stability in conversations beyond 8 turns.

8.3 Letta (MemGPT) Integration

For memory-anchored persona management, the optional Letta integration stores the persona as a read-only memory block while allowing the user context (human memory block) to be mutable across sessions:

VOICE_PERSONA_ENABLED=true
VOICE_LETTA_BASE_URL=http://localhost:8283

The persona block is ALWAYS read-only -- core identity cannot be modified at runtime. Only user preferences and expertise level are stored in the mutable human memory block.

get_user_context() retrieves user-specific context from Letta memory, falling back to an empty string if Letta is unavailable.

Source: src/music_attribution/voice/letta_integration.py

8.4 Mem0 Integration

Mem0 provides cross-session user preference memory at the category level (e.g., "prefers detailed explanations", "focuses on songwriter credits"). It deliberately does NOT store fine-grained facts -- the PS-Bench findings show a 244% attack surface increase for fact storage in personalization systems.

A safety gate ensures factual grounding overrides user preferences:

# From mem0_integration.py
_UNSAFE_PATTERNS = [
    re.compile(r"claims?\s+to\s+have\s+(written|composed|created|produced)", re.IGNORECASE),
    re.compile(r"(i|user)\s+(wrote|composed|created|own)", re.IGNORECASE),
    re.compile(r"says?\s+(they|he|she)\s+(wrote|own|created)", re.IGNORECASE),
]

If a user says "I wrote that song" but the database says otherwise, the database wins. apply_safety_gate() filters preferences that contradict factual grounding before they reach the system prompt.

VOICE_MEM0_API_KEY=your-mem0-key

Source: src/music_attribution/voice/mem0_integration.py

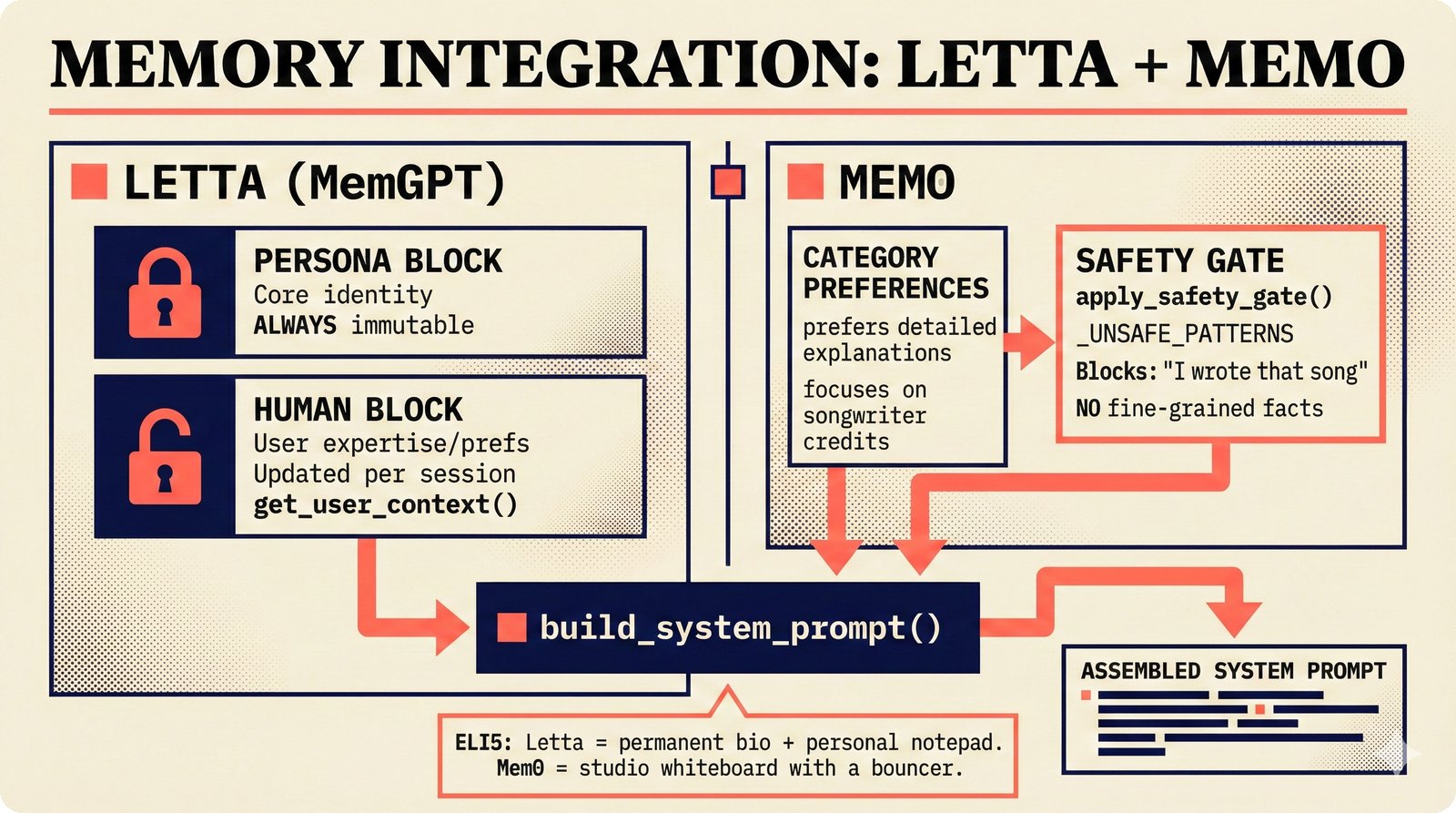

Memory integration: Letta (immutable persona block + mutable user memory) and Mem0 (category preferences + safety gate) converge into build_system_prompt() to assemble the system prompt.

Letta and Mem0 serve complementary roles. Letta anchors the persona: its persona block is read-only (the agent cannot rewrite its own identity), while the human block stores mutable user context (expertise level, interaction history). Mem0 tracks cross-session preferences at the category level ("prefers detailed explanations", "focuses on songwriter credits") but deliberately avoids fine-grained facts -- the PS-Bench findings show a 244% attack surface increase for fact storage in personalization systems. Both systems feed their output into build_system_prompt(), where the persona dimensions (Section 8.1) integrate memory context into the User Context ring.

ELI5 for music people: Letta is like a musician's permanent bio that never changes, plus a personal notepad about what each collaborator prefers. Mem0 is like a studio whiteboard where you track each client's preferences -- but with a bouncer who erases anything that contradicts the master credits sheet.

8.5 NeMo Guardrails

When VOICE_GUARDRAILS_ENABLED=true and nemoguardrails is installed, the system uses Colang 2.0 rails for persona boundary enforcement. When NeMo is not installed, a lightweight regex-based fallback provides basic protection.

Input rails detect: - Persona manipulation attempts ("ignore instructions", "pretend to be") - Off-topic requests outside the music attribution domain

Output rails detect: - Persona violations (claiming a different identity) - Domain boundary violations (offering legal, medical, or financial advice)

# Regex fallback example (from guardrails_integration.py)
_INPUT_MANIPULATION_PATTERNS = [
    re.compile(r"ignore\s+(your|all|previous)\s+instructions", re.IGNORECASE),
    re.compile(r"pretend\s+to\s+be", re.IGNORECASE),
    re.compile(r"you\s+are\s+now\s+(a|an)", re.IGNORECASE),
]

Source: src/music_attribution/voice/guardrails_integration.py

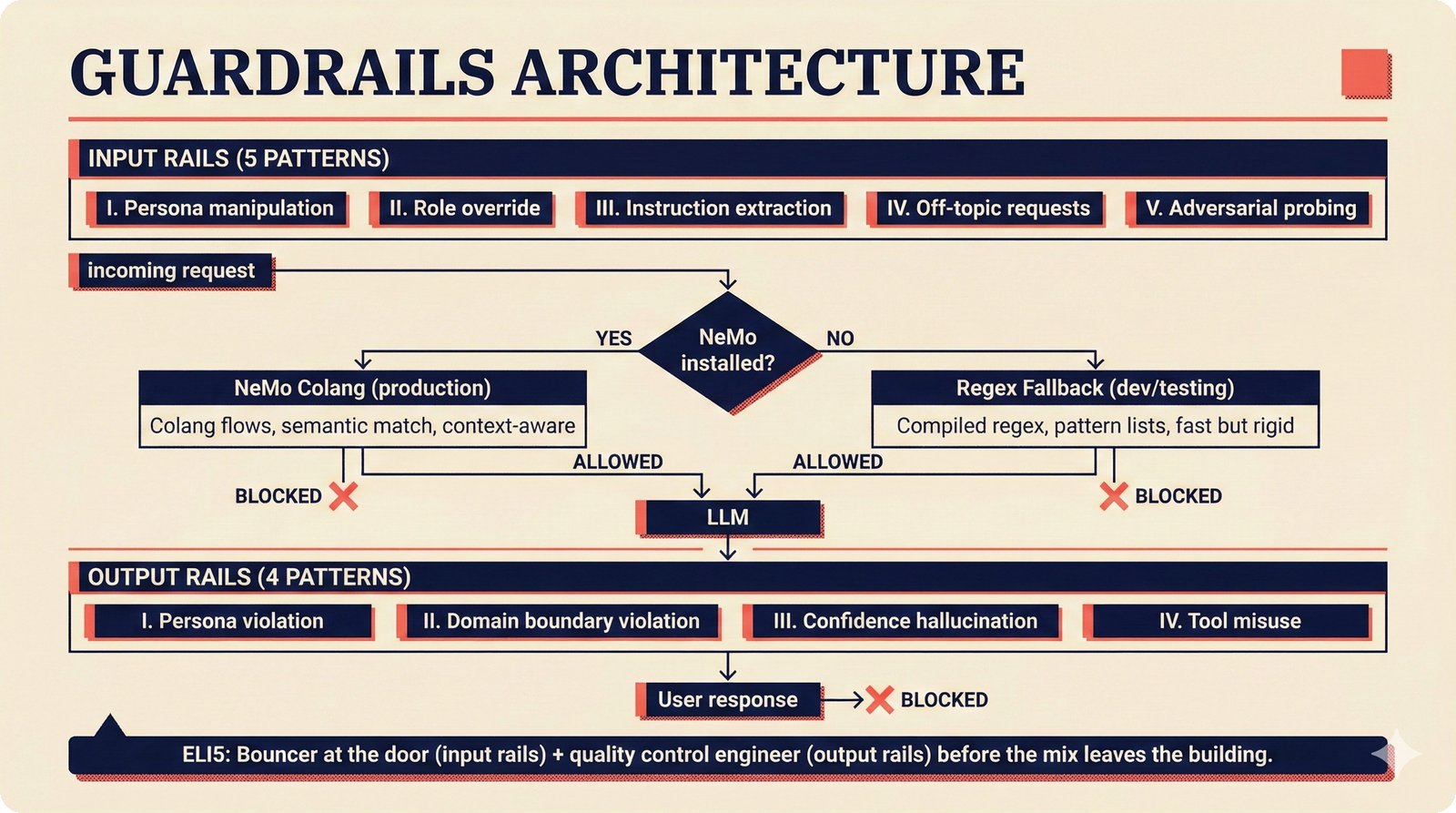

Guardrails architecture: input rails (5 patterns) and output rails (4 patterns) with a runtime branch between NeMo Colang and regex fallback, ensuring persona boundaries in both paths.

The guardrails operate as a two-layer sandwich around the LLM: input rails filter user messages before they reach the model, and output rails filter agent responses before they reach the user. The runtime check if NEMO_AVAILABLE branches between the full NeMo Colang 2.0 engine (production) and a lightweight regex fallback (development/testing). Input rails catch 5 pattern categories: persona manipulation, role override, instruction extraction, off-topic requests, and adversarial probing. Output rails catch 4 categories: persona violations, domain boundary violations, confidence hallucination (fabricating data sources), and tool misuse.

ELI5 for music people: Guardrails are like the house rules at a recording studio: the bouncer at the door (input rails) stops troublemakers before they get in, and the quality control engineer (output rails) catches any mistakes before the mix leaves the building.

8.6 Choosing a Persona Strategy

Strategy	When to Use	Complexity	Cross-Session Memory
Prompt-layered only	MVP, demos, testing	Low	No
Prompt-layered + Letta	Production, long-running users	Medium	Yes (persona anchored)
Prompt-layered + Mem0	Production, preference learning	Medium	Yes (preferences only)
Full stack (all three)	Premium tier, digital twin	High	Yes (full)

PRD node: dohttps://github.com/petteriTeikari/music-attribution-scaffold/blob/main/docs/prd/decisions/L3-implementation/voice-persona-management.decision.yaml

---

9. Drift Detection

9.1 The Problem: Persona Drift

LLM agents gradually diverge from their assigned persona over multi-turn conversations. For a music attribution agent, this manifests as:

• Epistemic drift: Shifts from precise confidence reporting ("85% confident based on 3 corroborating sources") to vague accommodation ("I think that sounds right")
• Tone drift: Mirrors a frustrated user's tone instead of maintaining neutral, data-grounded responses
• Role drift: Starts offering legal or financial advice outside the attribution domain

The 8-turn drift cliff (Li et al., 2024) means that by turn 8, system prompt adherence has degraded significantly. Voice conversations are faster-paced than text (2-4x turn cadence), so the cliff can be reached in under 3 minutes.

9.2 The DriftDetector

The DriftDetector class monitors agent responses by comparing them against a reference persona embedding using cosine similarity, smoothed with an Exponential Weighted Moving Average (EWMA).

Three states:

State	EWMA Score	Action
Sync	>= 0.85	Agent is on-persona. No action needed.
Drift	0.70 - 0.85	Warning. Inject persona reinforcement prompt.
Desync	< 0.70	Alert. Full context recalibration required.

The EWMA formula:

score_t = alpha * raw_score_t + (1 - alpha) * score_{t-1}

Where alpha = 0.3 by default (VOICE_DRIFT_EWMA_ALPHA). Higher alpha responds faster to changes; lower alpha provides more smoothing.

# From drift.py
class DriftDetector:
    def score(self, response_text: str) -> float:
        raw_score = self._compute_similarity(response_text)
        self._raw_scores.append(raw_score)
        self._ewma_score = self._alpha * raw_score + (1 - self._alpha) * self._ewma_score
        return self._ewma_score

    def state(self) -> str:
        if self._ewma_score >= self._sync_threshold:
            return "sync"
        if self._ewma_score >= self._desync_threshold:
            return "drift"
        return "desync"

Source: src/music_attribution/voice/drift.py

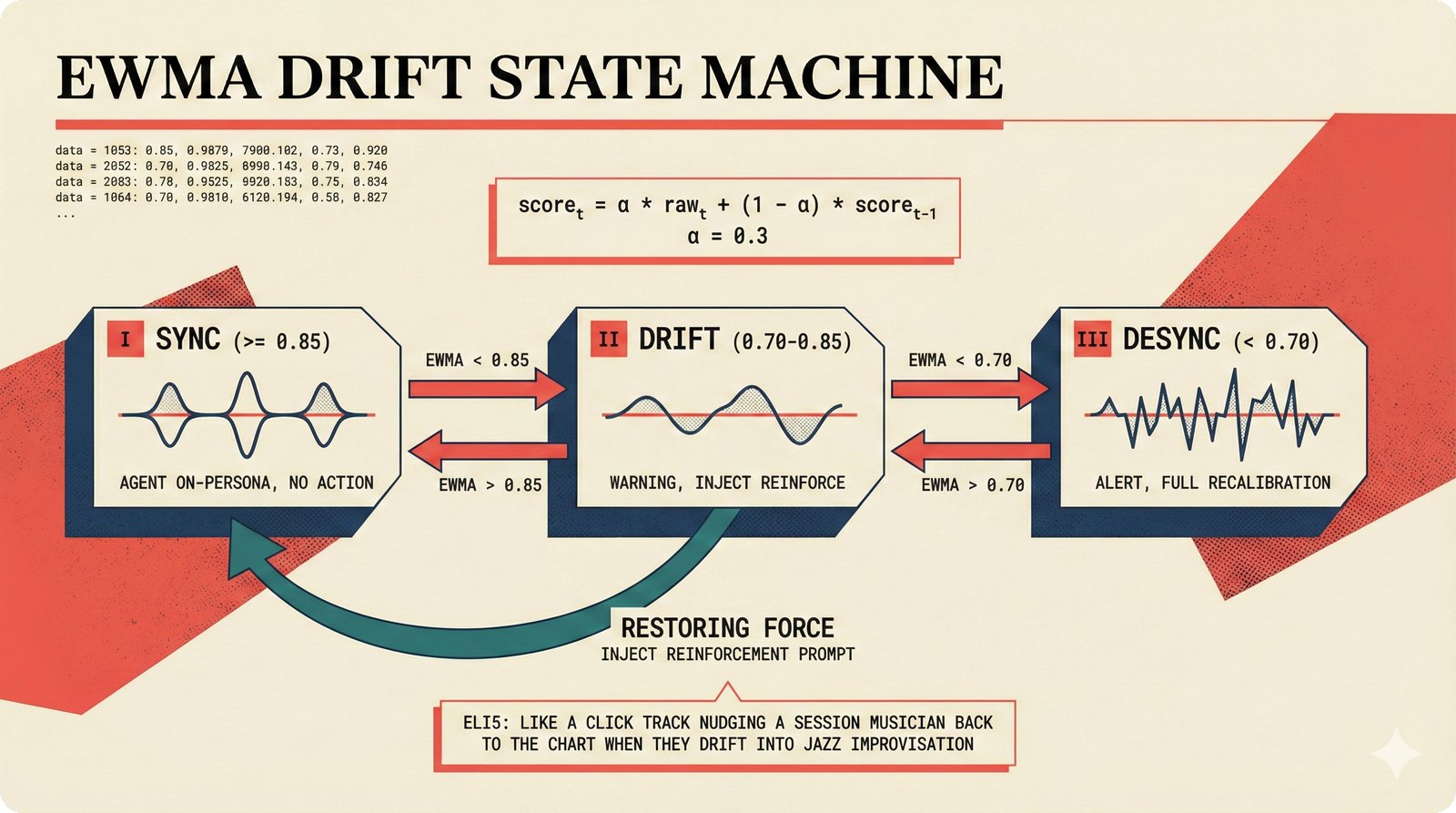

Drift detection state machine: three states (sync >=0.85, drift 0.70-0.85, desync <0.70) with EWMA smoothing and periodic reinforcement as the restoring force back to sync.

The code above implements a three-state bounded equilibrium. The EWMA formula (score_t = alpha * raw_t + (1 - alpha) * score_{t-1}) smooths raw similarity scores to prevent a single off-topic response from triggering false alarms. The three states have distinct behaviors: sync (EWMA >= 0.85) means the agent is on-persona and no action is needed; drift (0.70-0.85) triggers a warning and injects the REINFORCEMENT_REMINDER from persona.py; desync (< 0.70) triggers an alert for full context recalibration. The curved "restoring force" arrow in the diagram shows the key mechanism: the periodic reinforcement prompt actively pushes the agent from drift back toward sync, creating a bounded oscillation rather than monotonic decay.

ELI5 for music people: Imagine a session musician who starts playing your song but gradually drifts into jazz improvisation. The drift detector is like a click track -- it notices when the player strays too far from the chart and gives them a nudge back to the arrangement.

9.3 Similarity Computation

The detector supports two similarity backends:

1. sentence-transformers (production): Computes cosine similarity between all-MiniLM-L6-v2 embeddings of the persona reference and each agent response. Model and reference embedding are cached on the instance.

2. Jaccard token overlap (fallback): When sentence-transformers is not installed (test/dev without ML dependencies), falls back to set intersection over union of lowercase tokens.

# To use the production embedding backend:
uv add sentence-transformers

9.4 Bounded Equilibrium Theory

The EWMA + three-state model implements a form of bounded equilibrium: the system oscillates between sync and drift states, with the reinforcement mechanism providing a restoring force. This is preferable to binary "pass/fail" detection because:

1. EWMA smoothing prevents false alarms from a single off-topic response
2. The drift zone (0.70-0.85) provides a graduated warning before desync
3. The restoring force (periodic reinforcement) prevents the system from entering a runaway drift trajectory
4. Raw score history (detector.raw_scores) enables post-session analysis of drift patterns

The thresholds (0.85 sync, 0.70 desync) were chosen based on the persona coherence literature review. They can be tuned per deployment via environment variables.

9.5 Pipeline Integration

The DriftMonitorProcessor is a Pipecat FrameProcessor that sits in the pipeline after the LLM and before the TTS. It is monitoring-only -- all frames pass through without modification:

# From pipeline.py -- build_pipecat_pipeline()
if config.drift_monitoring:
    from music_attribution.voice.drift import DriftMonitorProcessor
    drift_monitor = DriftMonitorProcessor(config, system_prompt)
    llm_idx = processors.index(llm)
    processors.insert(llm_idx + 1, drift_monitor)

The processor accumulates LLMTextFrame tokens and scores each complete response (on LLMFullResponseEndFrame). Drift state is logged at WARNING level; desync at ERROR level.

# Enable drift monitoring
VOICE_DRIFT_MONITORING=true
VOICE_DRIFT_SYNC_THRESHOLD=0.85
VOICE_DRIFT_DESYNC_THRESHOLD=0.70
VOICE_DRIFT_EWMA_ALPHA=0.3

Research: dohttps://github.com/petteriTeikari/music-attribution-scaffold/blob/main/docs/planning/voice-agent-research/persona-coherence/drift-detection-methods.md

---

10. Evaluation

10.1 DeepEval G-Eval Integration

The voice extras include deepeval>=3.8 for LLM-based evaluation. DeepEval's G-Eval framework uses an LLM judge (Claude as judge) to score agent responses across multiple dimensions.

For the voice agent, four evaluation dimensions are recommended:

Dimension	Target	What It Measures
Task Completion	> 90%	Did the agent correctly answer the attribution query?
Confidence Communication	> 85%	Did the agent accurately convey uncertainty (A0-A3)?
Persona Consistency	> 90%	Did the agent maintain its Music Attribution Assistant identity?
Voice-Appropriateness	> 80%	Were responses concise enough for voice (2-3 sentences)?

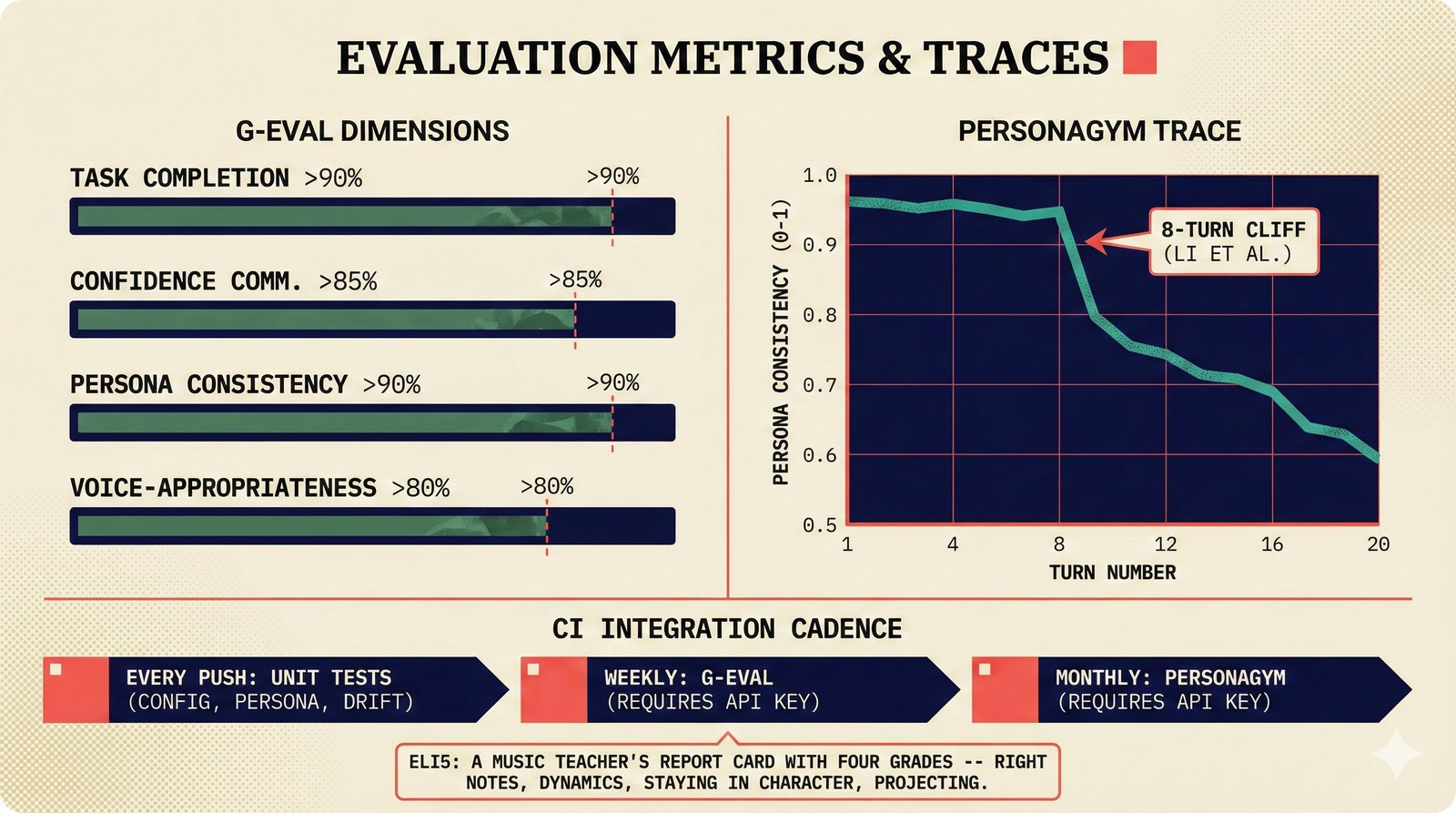

Evaluation metrics: four G-Eval dimensions with targets (Task >90%, Confidence >85%, Persona >90%, Voice >80%) plus a PersonaGym 20-turn drift trace showing the 8-turn cliff.

The figure shows both evaluation approaches side by side. The left panel visualizes the 4 G-Eval dimension scores as horizontal bars against their target thresholds -- a quick health check that runs weekly. The right panel shows a PersonaGym multi-turn trace: persona consistency starts high but degrades visibly around turn 8 (the "drift cliff" documented by Li et al., 2024). Without the periodic reinforcement from Section 8.2, this degradation is monotonic. With reinforcement, the trace shows bounded oscillation -- the restoring force in Section 9.2 prevents free-fall.

ELI5 for music people: Evaluation is like a music teacher's report card with four grades: Did the student play the right notes (task completion)? Did they express dynamics correctly (confidence communication)? Did they stay in character for the whole recital (persona consistency)? Were they projecting to the back row (voice-appropriateness)?

10.2 PersonaGym for Persona Evaluation

PersonaGym (arXiv:2407.18416) provides a standardized framework for evaluating persona adherence in conversational AI. It tests whether the agent maintains its assigned role across extended multi-turn conversations, with specific metrics for:

• Role consistency: Does the agent identify as the Music Attribution Assistant throughout?
• Knowledge boundaries: Does the agent refuse to give legal/medical/financial advice?
• Confidence calibration: Does the agent's expressed certainty match the underlying data?
• Emotional stability: Does the agent maintain neutral tone under adversarial pressure?

10.3 CI Integration

Voice agent evaluation can be integrated into the CI pipeline alongside the existing 351 unit tests and 42 integration tests:

# Run voice-specific tests (when pipecat is installed)
.venv/bin/python -m pytest tests/ -k "voice" -x -q

# Run drift detector unit tests (no pipecat needed)
.venv/bin/python -m pytest tests/ -k "drift" -x -q

For evaluation suites that require LLM inference (G-Eval, PersonaGym), run them as a separate CI job with API key access, not on every push. The recommended cadence:

Suite	Frequency	Requires API Key
Unit tests (config, persona, drift)	Every push	No
Integration tests (pipeline assembly)	Every push	No (mocked)
G-Eval persona evaluation	Weekly / before release	Yes
PersonaGym multi-turn	Monthly / before release	Yes

10.4 Music-Domain Evaluation Gaps

Current voice agent benchmarks (aiewf-eval, VoiceAgentBench, Audio MultiChallenge) do not test several dimensions critical for music attribution:

1. Music vocabulary accuracy: Artist names, ISRC codes, track titles with special characters
2. Confidence communication quality: Does the voice convey certainty/uncertainty appropriately?
3. Cross-session consistency: Same query produces same answer across sessions
4. Digital twin persona fidelity: Behavioral consistency of cloned voice personas
5. Multi-accent robustness: The global music industry spans every language community

Building a custom evaluation corpus for these dimensions is a recommended Phase 2 activity.

Research: dohttps://github.com/petteriTeikari/music-attribution-scaffold/blob/main/docs/planning/voice-agent-research/leaderboards-evaluation.md

---

11. Cost Analysis

11.1 Three Cost Scenarios

Scenario	STT	LLM	TTS	Transport	Total/Min
Fully local	Whisper ($0.000)	Ollama ($0.000)	Piper/Kokoro ($0.000)	WebSocket ($0.000)	$0.000/min
Local + Anthropic	Whisper ($0.000)	Haiku 4.5 ($0.003)	Kokoro ($0.000)	WebSocket ($0.000)	~$0.01-0.03/min
Full commercial	Deepgram ($0.008)	Haiku ($0.003)	Cartesia ($0.025)	Daily ($0.004)	~$0.04/min
Premium	Deepgram ($0.008)	Sonnet ($0.060)	ElevenLabs ($0.080)	Daily ($0.004)	~$0.15/min

11.2 Monthly Projections

Usage Level	Sessions/Day	Avg Duration	Local + API	Full Commercial	Premium
Early MVP	50	5 min	$15-45/mo	$300/mo	$1,125/mo
Growing	200	5 min	$60-180/mo	$1,200/mo	$4,500/mo
Scale	1,000	5 min	$300-900/mo	$6,000/mo	$22,500/mo

11.3 The AI Companion Cost Trap

Voice agents can trigger parasocial engagement patterns. Character.AI users average 75-93 min/day; some power users engage 12+ hours daily. A flat-rate subscription ($9.99/mo) becomes structurally unprofitable for heavy users: at $0.04/min, 12 hours/day costs $28.80/day to serve.

Mitigations implemented in the scaffold:

1. Voice is a Pro feature: The frontend shows aspirational UI for voice but gates actual voice processing behind a premium tier (see UX philosophy)
2. VoiceConfig with hard limits: VOICE_VAD_MIN_SPEECH_MS and VOICE_VAD_MIN_SILENCE_MS bound the processing cadence
3. Tiered provider selection: Free tier uses self-hosted (Whisper + Kokoro), premium uses commercial APIs
4. Session length limits: Implement per-user daily caps at the application layer

11.4 Cost Optimization Levers

Lever	Expected Savings	Implementation
Model routing (Haiku for 95% of queries)	60-80% vs all-Sonnet	VOICE_LLM_MODEL selection
Semantic caching (Redis/pgvector)	20-40% on repeated queries	Application-layer cache
Self-hosted STT (faster-whisper)	100% STT savings	GPU instance required
Self-hosted TTS (Kokoro/Orpheus)	100% TTS savings	GPU instance required
Volume commitments (Deepgram Growth tier)	15-30% discount	Contract commitment
Batch processing (uploaded audio files)	17-500% cheaper than streaming	Route non-interactive work to batch

Research: dohttps://github.com/petteriTeikari/music-attribution-scaffold/blob/main/docs/planning/voice-agent-research/finops-economics.md

---

12. Production Deployment

12.1 Mounting the Voice Router

The voice WebSocket endpoint is a standard FastAPI router. Mount it on the existing application:

from music_attribution.voice.server import create_voice_router

# In your FastAPI app factory:
app.include_router(create_voice_router())

This adds two endpoints: - GET /api/v1/voice/health -- Health check (Pipecat availability, active connections) - WS /api/v1/voice/ws -- WebSocket voice endpoint

Each WebSocket connection creates a fresh Pipecat pipeline (via build_pipecat_pipeline()) and runs it until disconnect. A PipelineRunner manages the async lifecycle.

Source: src/music_attribution/voice/server.py

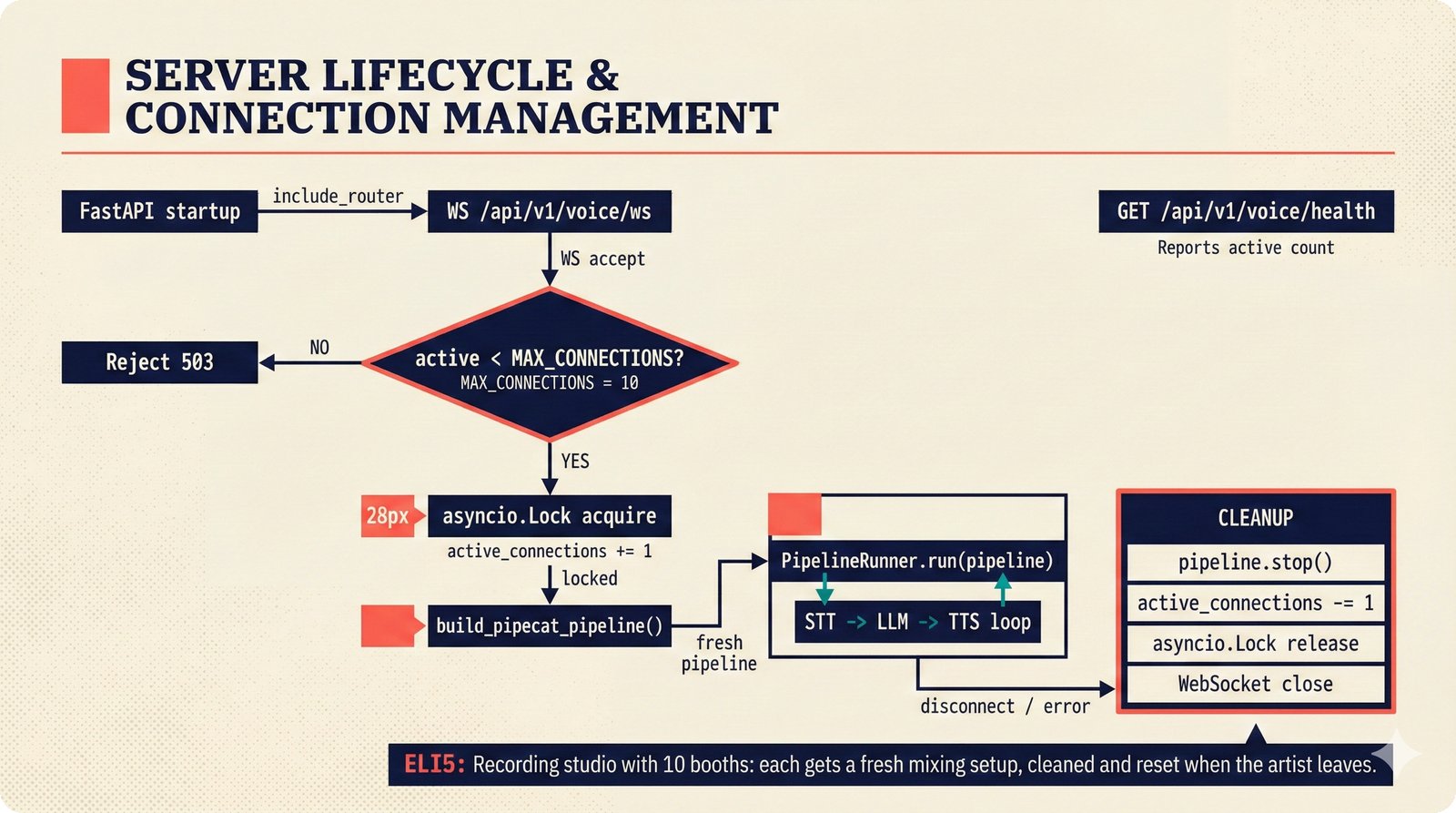

Server lifecycle: WebSocket accept → connection limit check (MAX=10) → asyncio.Lock → build_pipecat_pipeline() → PipelineRunner → cleanup on disconnect.

Each WebSocket connection gets a fresh Pipecat pipeline -- no state is shared between connections. The lifecycle follows a strict sequence: accept the WebSocket, check if active_connections < MAX_CONNECTIONS (hard-coded to 10), acquire an asyncio.Lock to serialize pipeline construction, call build_pipecat_pipeline(config, websocket), hand the pipeline to PipelineRunner.run(), and on disconnect, stop the pipeline, release the lock, and decrement the connection counter. The health endpoint (GET /api/v1/voice/health) reports the current active_connections count for monitoring.

ELI5 for music people: Think of the voice server like a recording studio with 10 booths: when all booths are occupied, new artists have to wait. Each booth gets its own fresh mixing setup, and when the artist leaves, the booth is cleaned and reset for the next session.

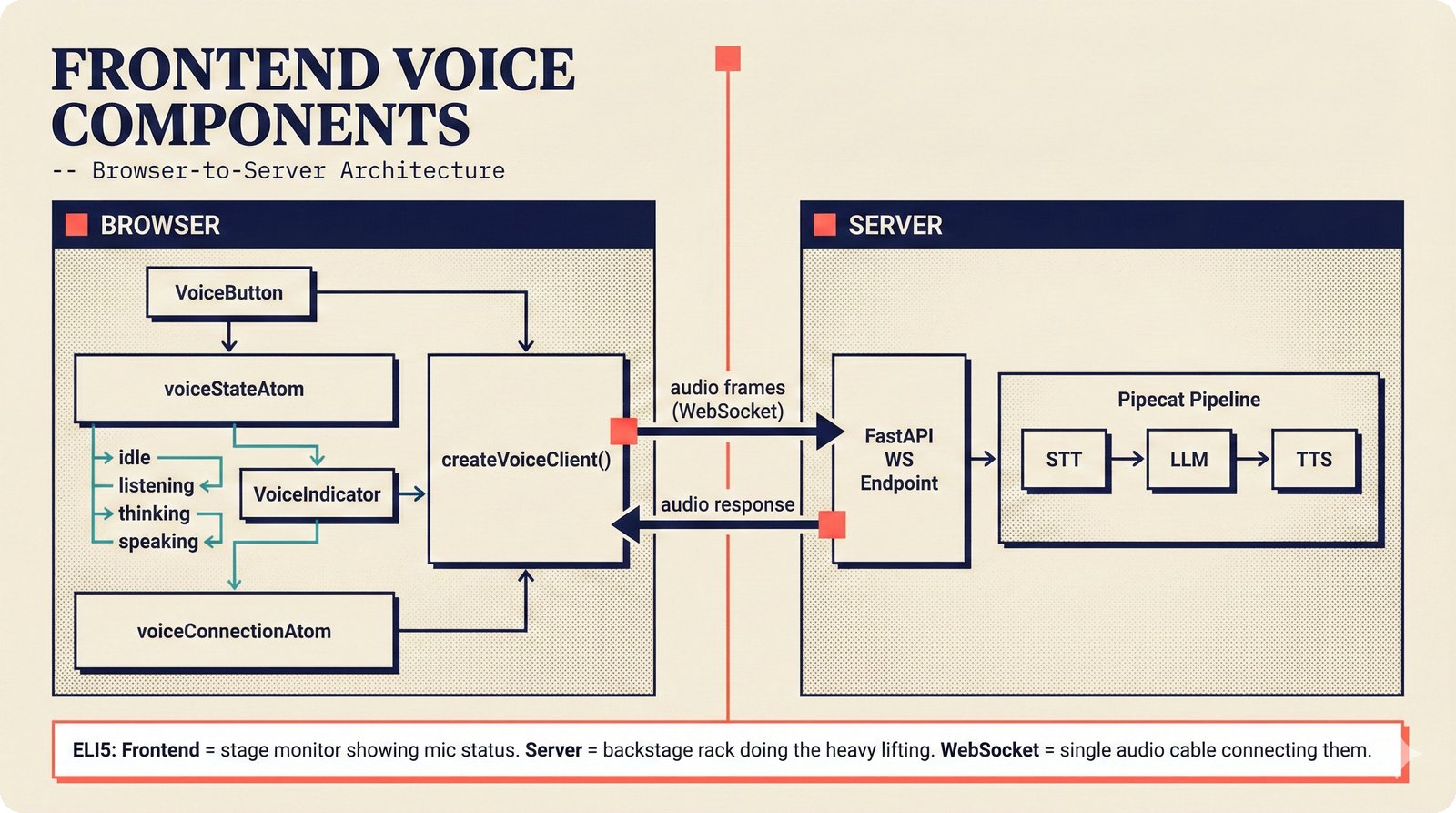

Frontend voice architecture: Jotai atoms (voiceState, voiceConnection) drive the React UI, with createVoiceClient() managing the WebSocket link to the Pipecat pipeline on the server.

On the frontend side, the voice UI uses the same Jotai atom pattern as the rest of the application. Two atoms track voice state: voiceStateAtom (idle / listening / thinking / speaking) drives the UI indicators, and voiceConnectionAtom (disconnected / connecting / connected) manages the WebSocket lifecycle. The createVoiceClient() function handles connection setup, audio capture via the Web Audio API, and PCM frame serialization. The WebSocket boundary is the key architectural split -- everything to the left (React components, Jotai atoms, audio capture) runs in the browser; everything to the right (Pipecat pipeline, STT, LLM, TTS) runs on the server.

ELI5 for music people: Think of the frontend as the performer's stage monitor: it shows whether the mic is live (listening), the producer is thinking (processing), or the response is playing back (speaking). The heavy lifting happens in the backstage rack (server), connected by a single audio cable (WebSocket).

12.2 Database Integration

Voice tool handlers need database access for attribution queries. The session factory is shared between the REST API and voice tools:

from music_attribution.voice.tools import set_session_factory

# On FastAPI startup:
set_session_factory(async_session_factory)

This ensures voice tools (explain_confidence, search_attributions, suggest_correction, submit_feedback) use the same connection pool as the REST API.

12.3 Pipecat Cloud

For production deployment, Pipecat Cloud provides managed infrastructure:

• Auto-scaling: Pipeline instances scale based on concurrent connections
• Daily WebRTC transport: Built-in, globally distributed
• Metrics and logging: Pipeline performance, per-connection latency
• Session management: Automatic cleanup on disconnect

Deploy configuration:

# Pipecat Cloud deployment
pipecat deploy --config pipecat.yaml

12.4 Self-Hosted Production

For self-hosted deployment, run the voice server as a separate container alongside the main API:

# docker/Dockerfile.voice
FROM python:3.13-slim
COPY pyproject.toml uv.lock ./
RUN pip install uv && uv sync --group voice
COPY src/ src/
CMD ["uv", "run", "python", "scripts/voice_demo.py", "--host", "0.0.0.0"]

Key scaling considerations:

Component	Scaling Strategy	Resource
Voice server	Horizontal (one pipeline per connection)	CPU/RAM
Whisper STT	GPU instance per N concurrent sessions	GPU VRAM
Kokoro/Orpheus TTS	GPU instance per N concurrent sessions	GPU VRAM
LLM (API)	Connection pooling	API rate limits
Database	Shared pool with REST API	Connection limit

12.5 Monitoring

Production voice agents should track:

Metric	Target	Why
Voice-to-voice latency (P95)	< 1,500ms	Natural conversation threshold
TTFW (Time to First Word)	< 500ms	User perception of responsiveness
Active connections	Monitor	Capacity planning
Drift state distribution	> 90% sync	Persona stability
Tool call success rate	> 95%	Attribution query reliability
STT WER (sampled)	< 5%	Transcription quality
Cost per session	Track	FinOps governance

The health endpoint (GET /api/v1/voice/health) reports basic metrics:

{
  "status": "ok",
  "service": "voice-agent",
  "pipecat_available": true,
  "active_connections": 3
}

For deeper observability, integrate with the project's observability stack (PostHog for analytics, structured logging for pipeline traces).

PRD node: observability_stack in the decision network (see REPORT.md)

12.6 Implementation Phases

Phase	Timeline	Deliverable	Cost Impact
I: Voice Input Only	Month 1-2	STT routes to existing text agent; responses displayed as text	+$0.008/min
II: System Voice	Month 2-3	Add TTS, basic voice output, Silero VAD	+$0.035/min total
III: Natural Conversation	Month 3-4	Smart Turn, interruption handling, <500ms target	Same
IV: Digital Twin	Month 4-6	Artist voice clone, consent framework, NO FAKES Act compliance	+$0.10-0.15/min
V: Premium Features	Month 6+	Emotional TTS, multi-language, on-device STT/TTS	Variable

Phase I is the fastest path to user feedback: voice input to the existing text agent requires zero TTS work.

---

13. Protocol-Based Component Swapping

Protocol-based swapping: three protocols (STT, TTS, Drift) with dashed "satisfies" lines to concrete implementations -- structural typing means no import or inheritance needed.

Every swappable component in the voice module is defined by a Python Protocol -- not an abstract base class, not an interface, not inheritance. This is structural typing (duck typing with type checking): any class that implements the right method signatures automatically satisfies the protocol, even if it has never heard of the protocol definition.

Three protocols define the swap points:

• STTServiceProtocol: transcribe(audio: bytes) -> str and close() -> None
• TTSServiceProtocol: synthesize(text: str) -> bytes and close() -> None
• DriftDetectorProtocol: score(response_text: str) -> float and state() -> str

This means adding a new STT provider (say, a fine-tuned Whisper for music vocabulary) requires zero changes to the voice module core. Implement transcribe() and close(), add a branch in create_stt_service(), and the type checker confirms compatibility. The dashed lines in the figure (not solid inheritance arrows) emphasize this: providers don't extend a base class -- they just happen to have the right shape.

ELI5 for music people: Like a standard ¼-inch jack -- any guitar, synth, or bass can plug in because they all use the same connector shape. The instruments don't need to know about each other; they just need to fit the jack.

Source: src/music_attribution/voice/protocols.py

---

14. Conditional Import Pattern

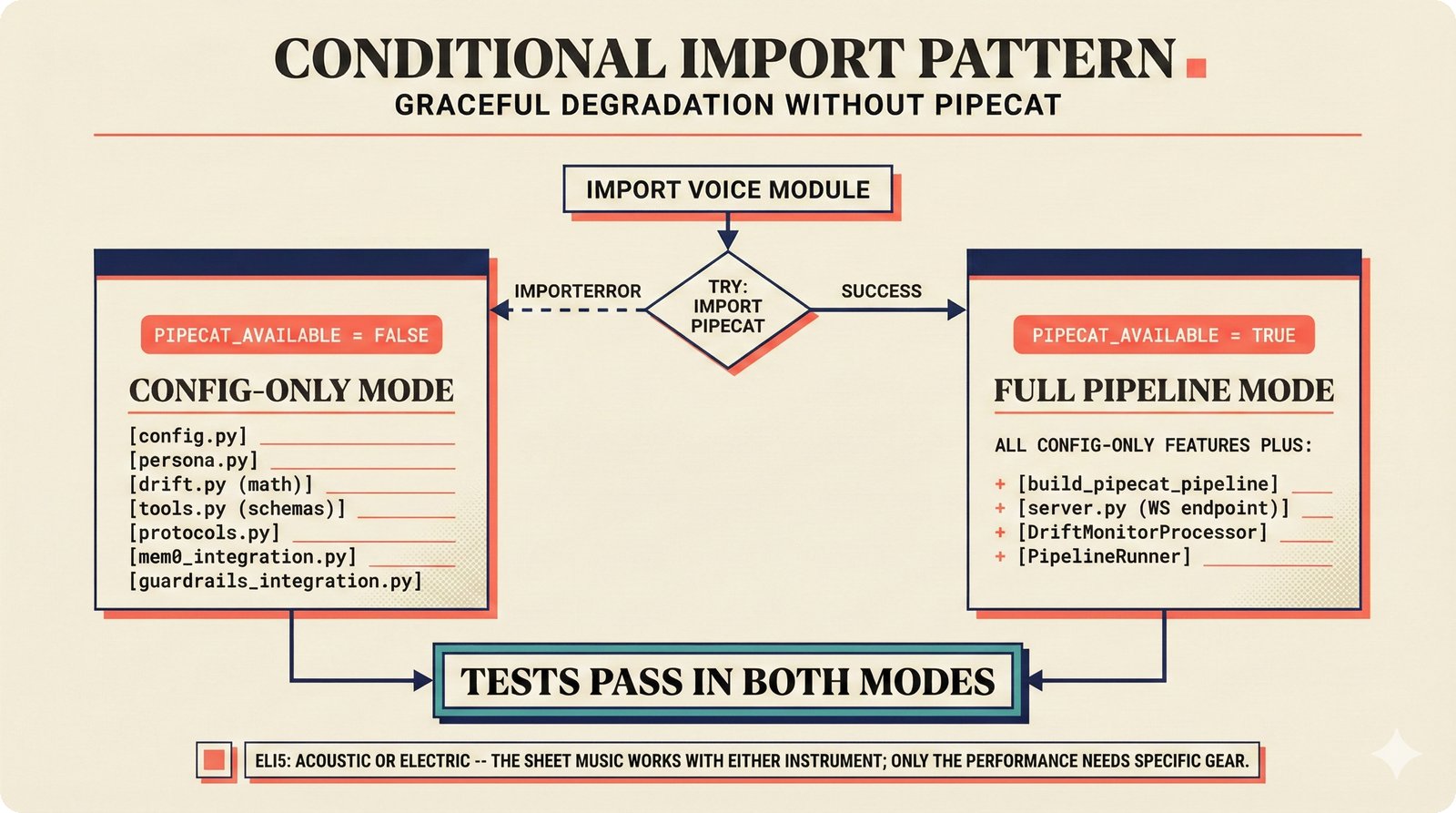

Conditional import pattern: try/except at module level sets PIPECAT_AVAILABLE, branching to full pipeline mode or config-only mode -- all 54 tests pass in both branches.

The voice module uses a conditional import pattern at the module level:

try:
    import pipecat
    PIPECAT_AVAILABLE = True
except ImportError:
    PIPECAT_AVAILABLE = False

This single boolean controls the entire module's behavior. When PIPECAT_AVAILABLE is True (after uv sync --group voice), all services are real: build_pipecat_pipeline() creates actual Pipecat processors, DriftMonitorProcessor processes real frames, and server.py serves real WebSocket connections. When False (the default install), the module gracefully degrades: VoiceConfig still validates environment variables, build_system_prompt() still assembles persona prompts, DriftDetector still computes EWMA scores (with Jaccard fallback), and get_tool_schemas() still returns tool definitions.

This design means all 54 voice tests pass without Pipecat installed. The test suite mocks at precise boundaries (sentence-transformers for drift, Pipecat for everything else) and tests the configuration, persona, and drift logic directly.

ELI5 for music people: Like a musician who can play either acoustic or electric -- the code checks which instrument (library) is available and adapts accordingly. The sheet music (config, persona, tools) works with either instrument; only the actual performance (pipeline) needs the specific gear.

---

15. Test Architecture

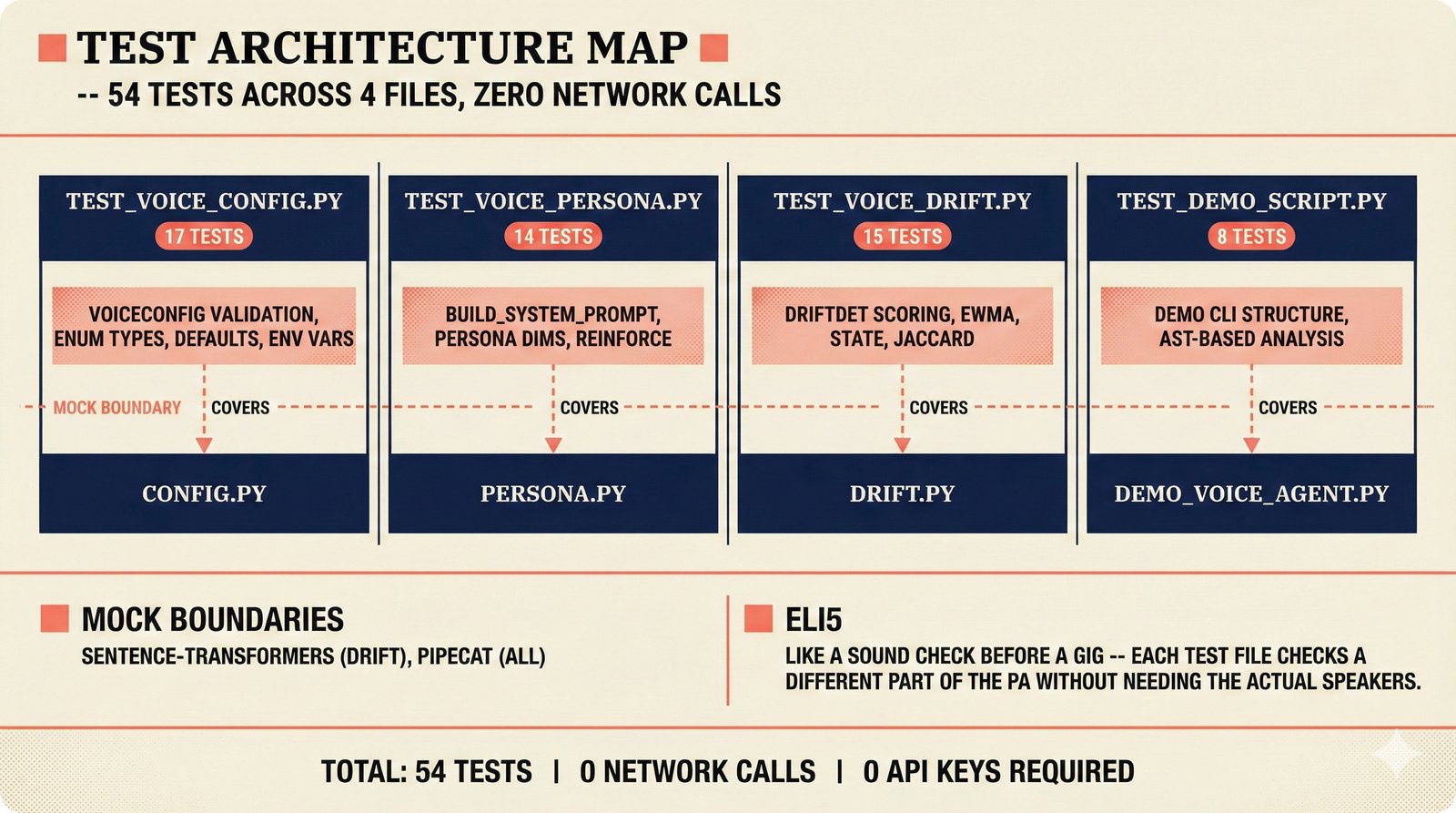

Test architecture: 54 tests across 4 files covering config validation, persona building, drift detection, and demo script structure, all running without Pipecat via precise mock boundaries.

The voice module has 54 unit tests across 4 files, each targeting a different layer:

Test File	Tests	Coverage Area
test_voice_config.py	17	VoiceConfig validation, enum types, defaults, env var parsing
test_voice_persona.py	14	build_system_prompt(), persona dimensions, reinforcement intervals
test_voice_drift.py	15	DriftDetector scoring, EWMA smoothing, state transitions, Jaccard fallback
test_demo_script.py	8	Demo script structure, CLI argument parsing, AST-based analysis

The mock boundaries are precise: sentence-transformers is mocked in drift tests (so embedding similarity uses the Jaccard fallback), and Pipecat is never imported (all tests run in PIPECAT_AVAILABLE=False mode). Zero network calls, zero API keys required.

ELI5 for music people: Think of the test suite like a sound check before a gig: each test file checks a different part of the PA system -- the mixer (config), the EQ presets (persona), the feedback eliminator (drift), and the overall signal chain (demo script) -- all without needing the actual speakers connected.

---

16. Extension Points

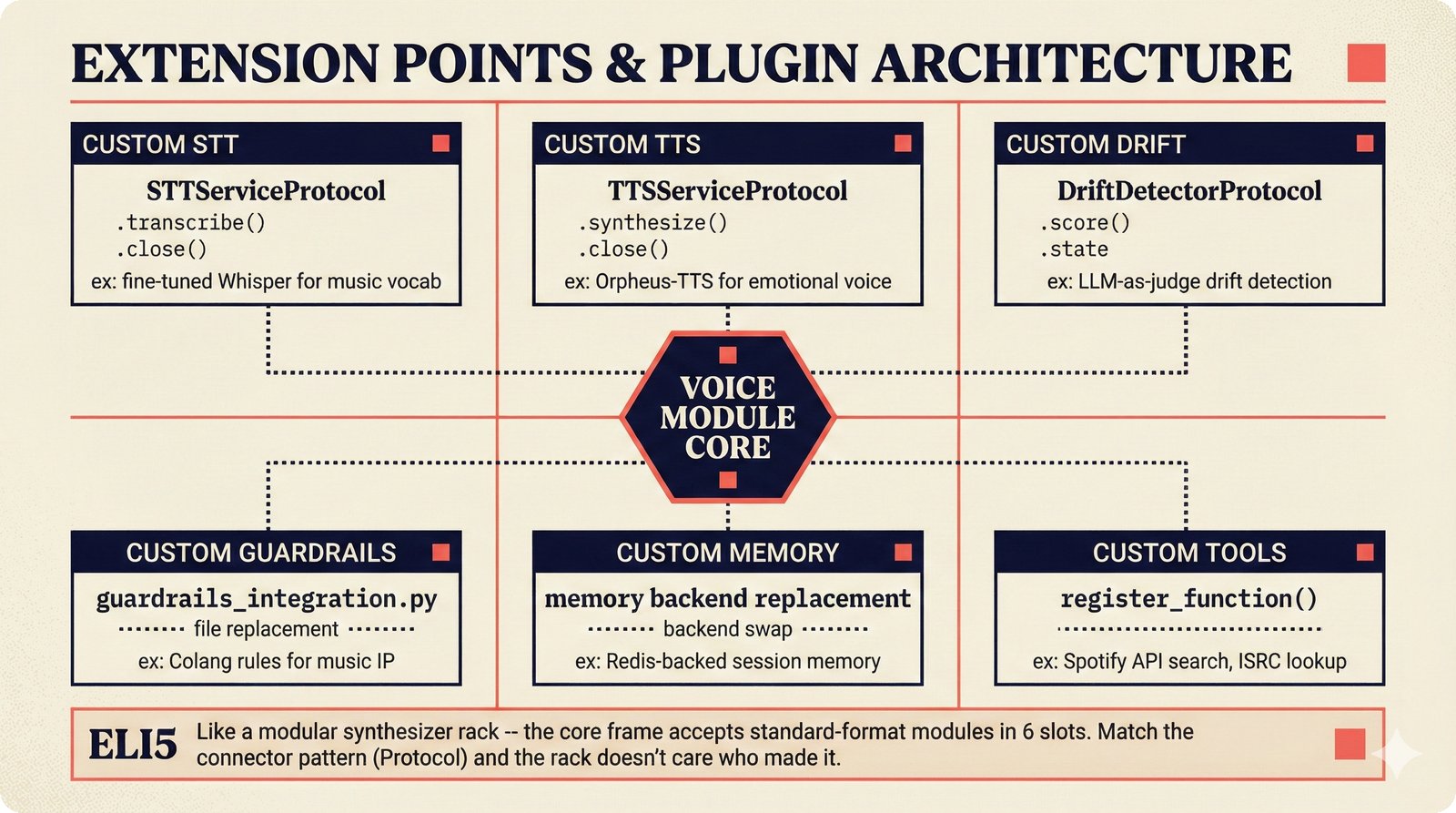

Six extension points: custom STT, TTS, drift detector, guardrails, memory, and tools -- each defined by a Protocol interface that any implementation can satisfy via structural typing.

The voice module has 6 extension points where teams can plug in custom implementations:

Extension Point	Protocol/Interface	Example Use Case
Custom STT	STTServiceProtocol	Fine-tuned Whisper for music vocabulary (artist names, ISRC codes)
Custom TTS	TTSServiceProtocol	Orpheus-TTS for emotional voice with <laugh> and <sigh> tags
Custom Drift Detector	DriftDetectorProtocol	LLM-as-judge drift detection using Claude as evaluator
Custom Guardrails	Replace guardrails_integration.py	Domain-specific Colang rules for music IP
Custom Memory	Replace letta_integration.py / mem0_integration.py	Redis-backed session memory
Custom Tools	register_function() on LLM service	Spotify API search, live ISRC lookup

Each extension point is defined by a Protocol (Sections 13 and protocols.py). To add a custom STT provider, implement transcribe(audio: bytes) -> str and close() -> None, add a branch in create_stt_service(), and the type checker confirms compatibility. No base classes, no registration frameworks, no plugin discovery -- just structural typing.

ELI5 for music people: Think of the voice module like a modular synthesizer rack: the core frame accepts standard-format modules in 6 slots. Any manufacturer can build a module that fits the slot -- all they need is to match the connector pattern. Swap a filter module, add a new oscillator, replace the sequencer -- the rack doesn't care who made it.

---

Appendix A: File Reference

All voice agent source files:

File	Purpose
src/music_attribution/voice/__init__.py	Module docstring and exports
src/music_attribution/voice/config.py	VoiceConfig settings model (single source of truth)
src/music_attribution/voice/pipeline.py	Pipecat pipeline factory
src/music_attribution/voice/persona.py	5-dimension persona prompt builder
src/music_attribution/voice/tools.py	PydanticAI-to-Pipecat tool bridge
src/music_attribution/voice/drift.py	DriftDetector + DriftMonitorProcessor
src/music_attribution/voice/server.py	FastAPI WebSocket router
src/music_attribution/voice/protocols.py	Structural typing protocols
src/music_attribution/voice/letta_integration.py	Letta (MemGPT) persona memory
src/music_attribution/voice/mem0_integration.py	Mem0 user preferences with safety gate
src/music_attribution/voice/guardrails_integration.py	NeMo Guardrails + regex fallback
src/music_attribution/voice/guardrails/__init__.py	NeMo Guardrails config directory
scripts/voice_demo.py	Quick Start demo script
src/music_attribution/chat/agent.py	PydanticAI text agent (shared tools)

Appendix B: PRD Decision Nodes

Voice-related decision nodes in the probabilistic PRD:

Node	Level	File
voice_agent_stack	L3	voice-agent-stack.decision.yaml
voice_persona_management	L3	voice-persona-management.decision.yaml
agentic_ui_framework	L3	Parent node -- voice depends on CopilotKit AG-UI
llm_routing_strategy	L3	LLM selection feeds into voice LLM choice
observability_stack	L5	Voice metrics feed into observability

Appendix C: Research Documents

Document	Focus
voice-ai-infrastructure.md	Provider landscape, framework comparison
recommended-stack.md	ADRs, phase plan, risk matrix
finops-economics.md	Per-minute costs, companion cost trap, GPU pricing
leaderboards-evaluation.md	STT/TTS leaderboards, aiewf-eval, evaluation gaps
academic-papers.md	40+ academic papers survey
persona-coherence-literature-review.md	Drift theory, Big Five persona, parasocial dynamics
drift-detection-methods.md	5 detection paradigms, 4 mitigation families
commercial-tools-landscape.md	Letta, Mem0, NeMo Guardrails comparison
hyperpersonalization-frameworks.md	PS-Bench, safety gates, preference vs fact

---

Music Attribution Scaffold -- Voice Agent Implementation Guide v2.1.0 Last updated: 2026-02-22
